Other gun designs are truly brilliant on paper: reduced overall length and yet no reduction of barrel length, increased capacity in a smaller package, or mechanisms of ignition that appear to be mechanically unavoidable. The engineering may be graceful, the packaging may be future-oriented and the handling may seem to be a no more issue question.
Then there comes a break in the series. A feed path is reduced to a pinch point. A manufacturing tolerance stack is exposed through an ignition system. A mere user input becomes a reliability gate. In small arms, the original failure is the first sign of displaying the ideas which were strong and the ideas which had been but ingenious.

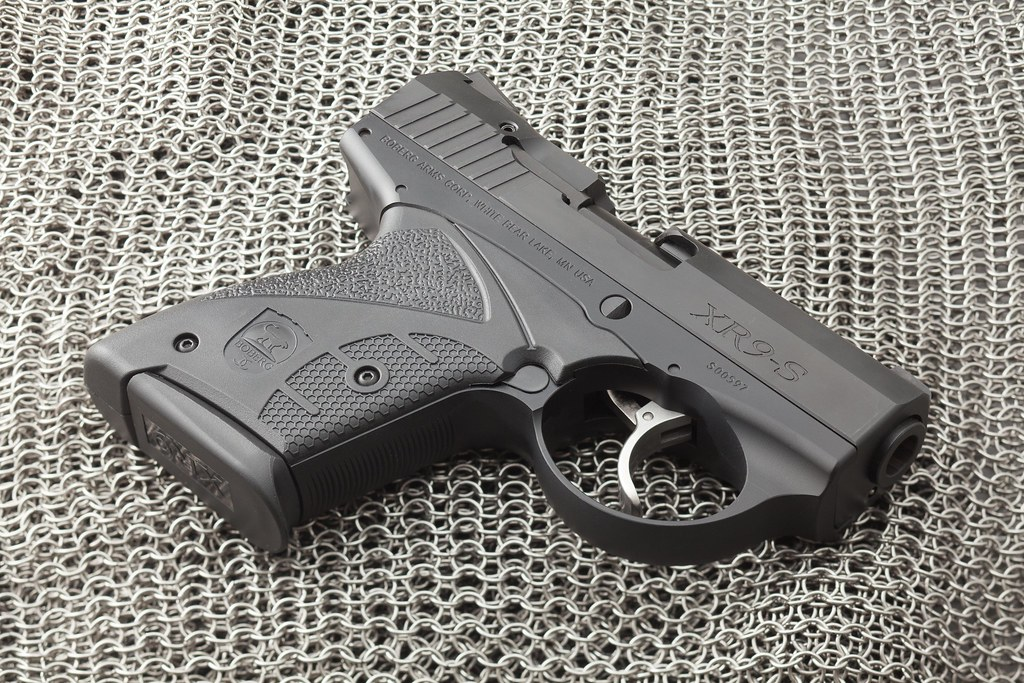

1. Reverse-Feeding Pocket Pistols (Boberg XR9 Pattern)
The Boberg XR9 concept is a pocket pistol design gimmick: have the chamber directly over the magazine, and drag the cartridges out of the magazine backwards when the slide moves rearwards, this is a way of reducing the total length but leaving significant barrel length. The XR9-S couples that notion with a rotating barrel, locked-breech system and a seven-round magazine.
The complexity that consists of the package also gives rise to new modes of failure. The loading cycle requires a complete and accurate manipulation of the slide, any incomplete slide travel may result in a cartridge stuck (jamming) against the rear of the chamber area and lock-up hard of the gun. The long-term write-up of Lucky Gunner explains how the action may bind so hard that the clearing requires significantly more force than the usual stoppage drills, which is aggravated when the gun is dirty or the shooter methodology fail in stress. The brilliance of the design cannot go without the requirement of consistency.
2. Rimfire Semiautos with an Endoskeleton high-capacity magazines
Even rimfire pistols and rifles usually blow your mind with light weights, reduced recoil, and large on-board capacity, and recent models can operate quite remarkably during lengthy rounds. However, the cartridge is a source of engineering limitation in that rimfire priming is disbursed around the rim, as opposed to a centralfire primer cup, thus leading to increased ignition variability.
That inconsistency is apparent through the occasional inability to fire which is not connected to the moving parts of the firearm. The Rimfire Report subdivides the priming process and points out that, in large samples, there are statistical norms of some duds. In one of the quoted tests, the failure rate was estimated as approximately 0.26 percent in thousands of rounds, not zero. Even where the mechanical design is sound, a single ignition miss in high-capacity rimfire platforms may present itself as a platform problem.
3. Filling Flat-Nosed.22s with lead bullets

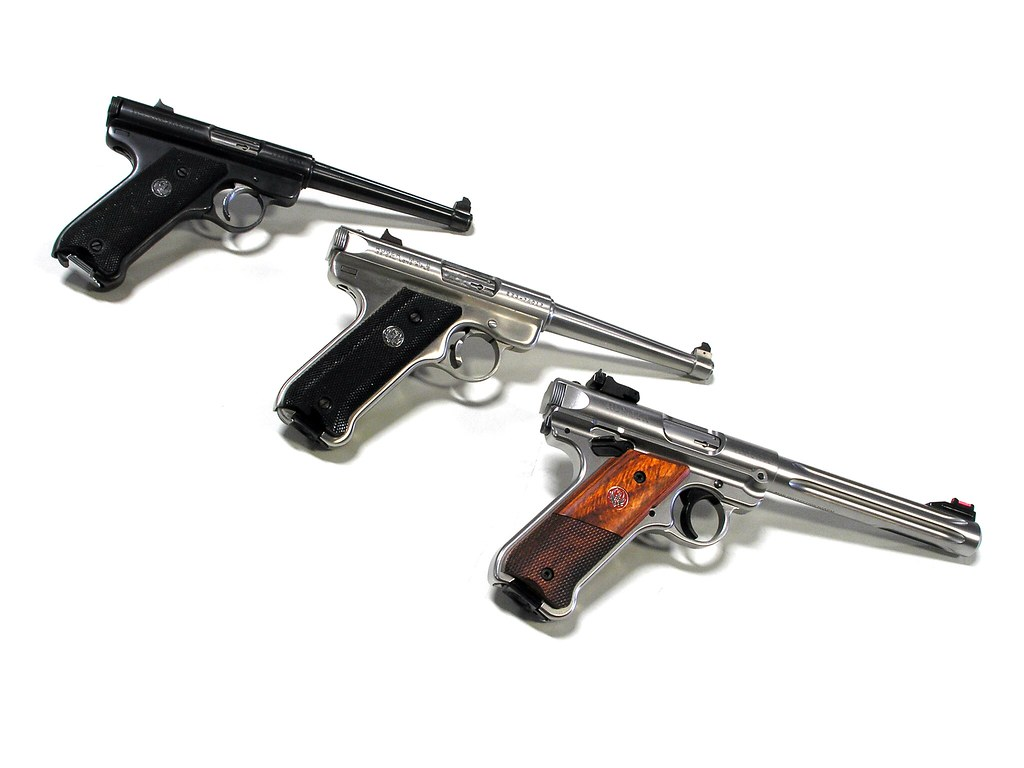

Small rimfire pistols often resemble the mythical “trainer” or utility sidearm: light recoil, contemporary ergonomics, and a magazine that holds much more than vintage .22 models. The snag is that most of these pistols have to accept a huge variety of bullets with magazines that are optimised in terms of capacity and size.
In the same Rimfire Report, the author described in length a test of a modern pistol in the .22 caliber that ignition failures were not the main problem but were due to the hollow points that are prone to nosedive within the magazine and this made a feeding experience a geometry issue. It is a standard example of a design just appearing solved until ammunition profile, follower angle, spring force, and relationship between feed ramp intersect in the most unforgiving section of the cycle.

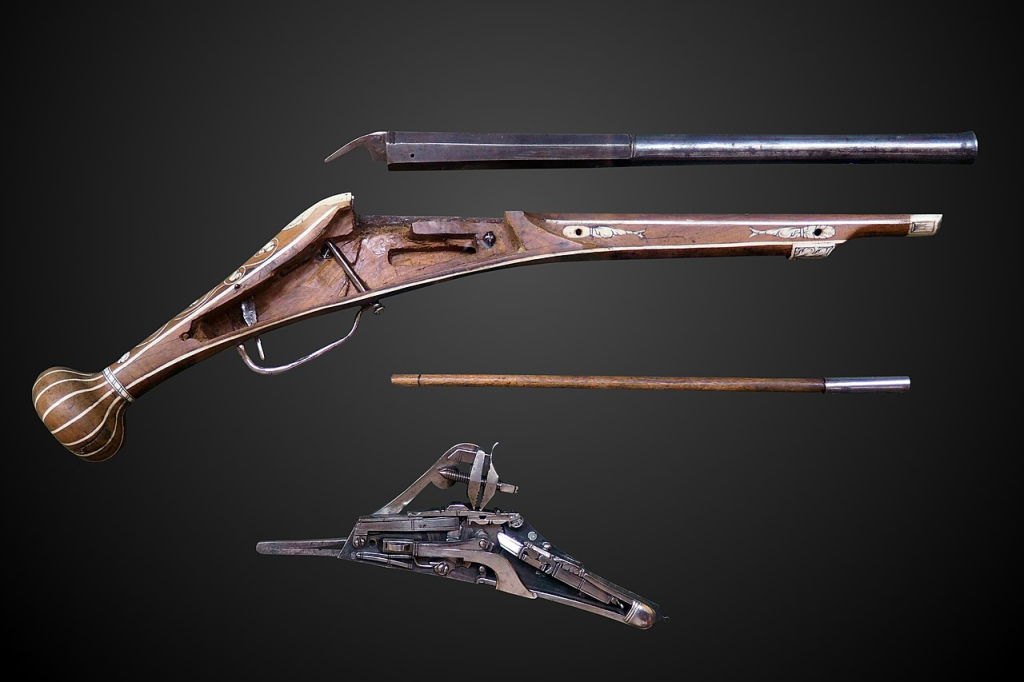

4. Wheel-Locks: The Dirt-Hating Precision Spark Machine
Wheel-lock guns may appear like the first really contemporary igniting system: no lit match to deal with, an internal spark generator and clockworkish machinations instead of battlefield hardware. Pyrite is scraped off by a spring-driven steel wheel into sparks into a priming pan- conceptually clean, and in competent hands, possible.
The issue is that the very complex components count that enables the system to exist increases sensitivity to foulage, wear, and misalignment. As explained in Standing Well Back, wheel-locks were elaborate and costly, and there was a reason why simpler successors emerged. In practice, when a mechanism has a high number of interacting surfaces then a slight shift in friction or load of debris may result in a stoppage event, rather than a little inconvenience.

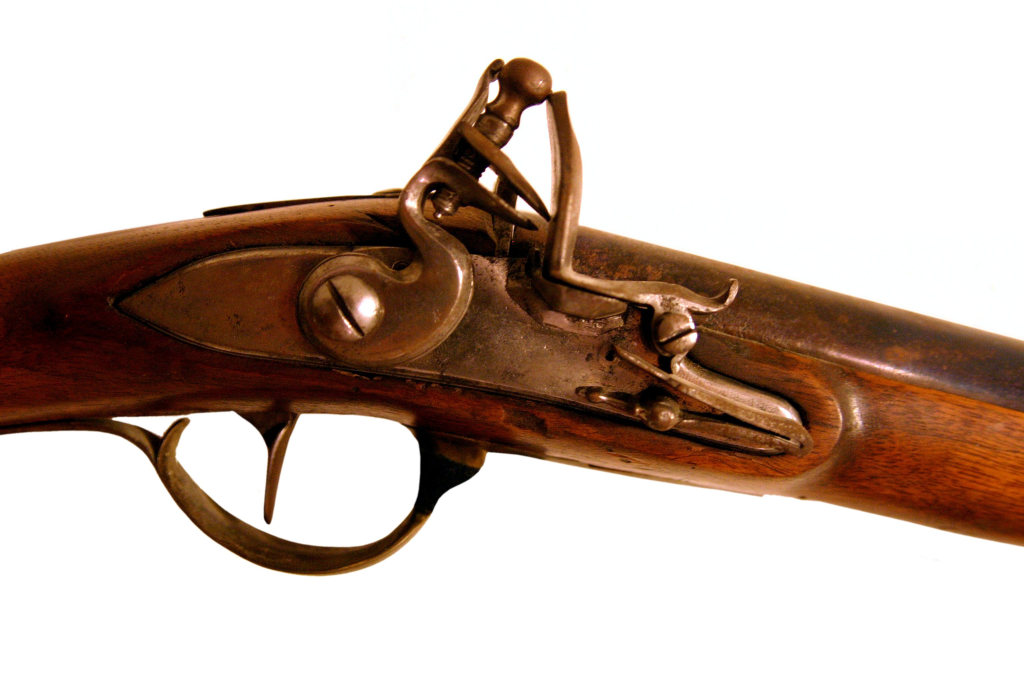

5. Flintlocks: Easy to Own and Use, Still Weather-Bound
The flintlock resembles the graceful finesse of the first ignition: a spring-loaded flint smashes a frizzen, sparks drop into priming powder, and the main charge goes off. The attraction of the flintlock as opposed to the previous models is the wrapping of the ignition and the capability to include covers that act as shield against the pan.
But yet the design is naked in nature. The moisture control and the frizzen surfaces and the moistness are on the border of an “functional and a click phenomenon. The fact that, as explained by Standing Well Back, later locks enhanced both safety and weather resistance underscores the main truth, in that, as far as ignition systems based on open priming and spark generation are concerned, they are clever, but operationally delicate in adverse weather.

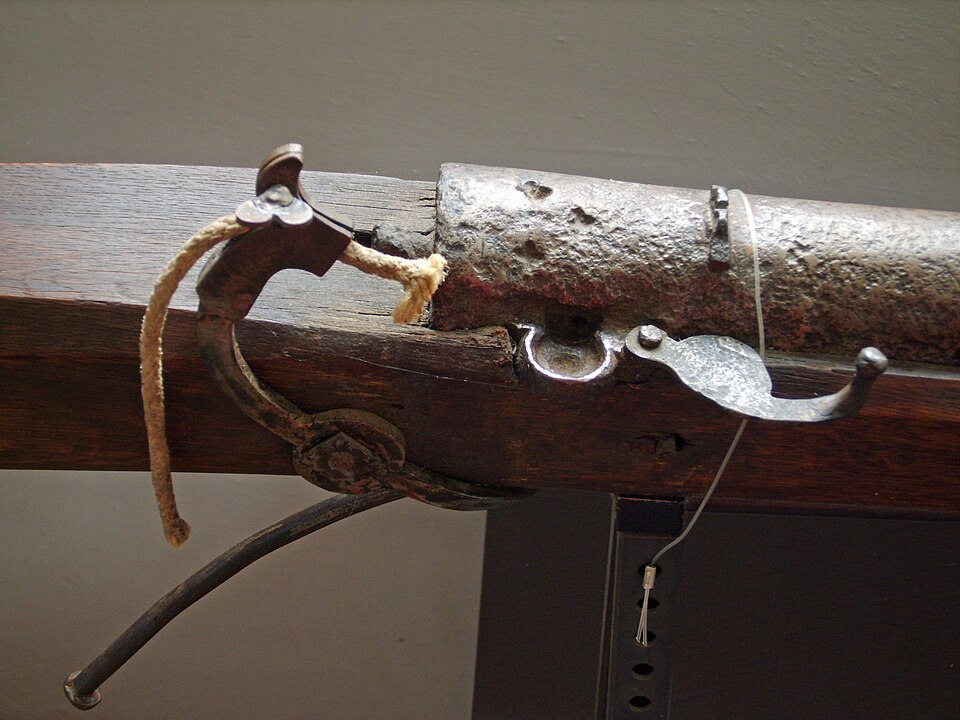

6. Matchlocks: The Minimal-Technology Predicted Ignition of the greatest Operational Cost
Matchlocks may be presented in an illusion of robustness since the device is simple: a slow burning match is lowered into priming powder. The reduction in the number of moving parts can mean the reduction in failures.
Practically the match itself is the faulty feature: it may fail, burn improperly, or be inconvenient in windy and wet weather. Standing Well Back also points out why early innovators were trying to find alternatives, the open flame and access to larger powder stocks cause handling and safety problems. The malfunction in this case is not the failure of a component; it is a system dependency that goes down once the environment changes.

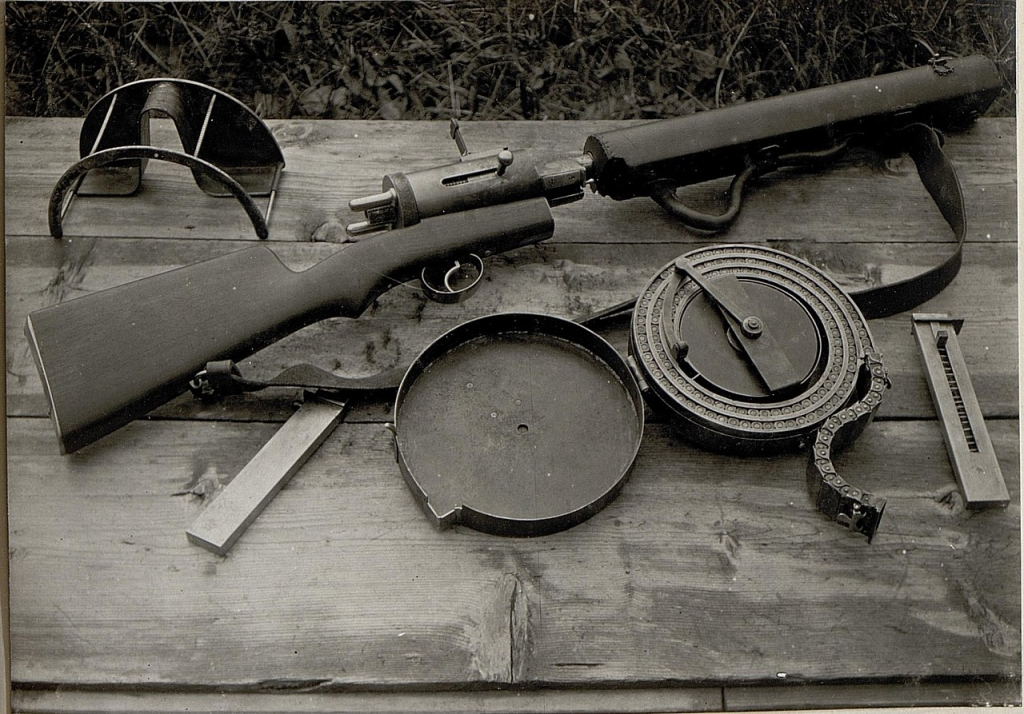

7. Drum Magazines: High Capacity, High Friction, High Consequence
Drum magazines represent a design success: the quantity of rounds in a comparatively small area of space, frequently with a visual and mechanical allure that shouts of industrial ingenuity. Ideally, the spring-based feed path is simply another form of introduction of cartridges to the action.
Practically, drum machines provide friction surfaces and longer feed paths and are more sensitive to spring tension and internal geometry than box magazines. The UC Davis firearms technology exhibit explains drums as one of the forms of magazines used as cartridges made in concentric layers and activated by a spring which is in theory correct and in practice is ruthless. A reminder that capacity is not free is usually the first malfunction when the feed energy has to follow a longer and more complicated route.

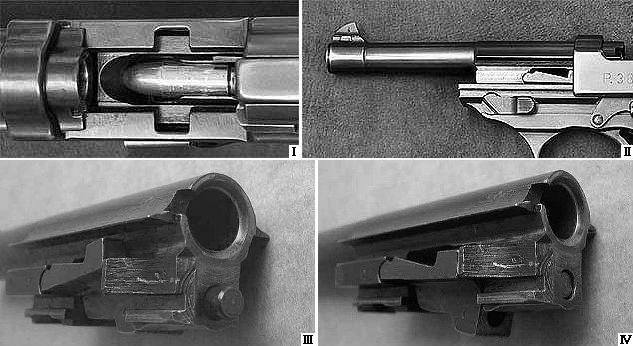

8. Extremely Compact Locked-Breech Pistols With Minimal Grip Real Estate
Modern micro-compacts can look like a solved engineering puzzle: locked-breech operation, serious caliber performance, and concealability that would have sounded unrealistic decades ago. The engineering typically requires aggressive recoil springing, short slide travel, and tight timing windows.
Those tight windows can make the system more sensitive to shooter interface. Limited grip area increases the odds of inconsistent resistance to recoil, and short-cycle dynamics leave less margin for extraction and ejection to recover from drag, fouling, or marginal ammunition. It is not that compact locked-breech pistols are unreliable by default; it is that the design leaves less room for variables before the cycle becomes stoppage-prone.

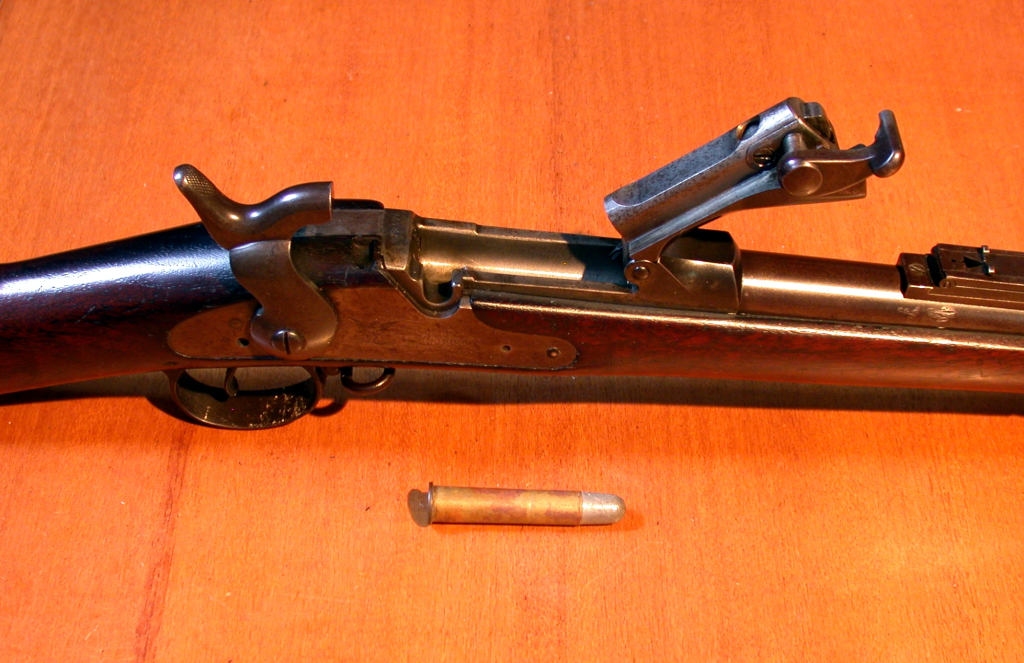

9. Breechloading Repeaters: The Leap Forward That Demanded Better Lockup
The move from muzzleloading to metallic cartridges and breechloading was a revolution in speed and practicality, and repeating mechanisms look obvious in hindsight. But the innovation also forced designers to solve a critical safety and reliability requirement: the breech must lock up consistently under extreme pressure and heat.
The UC Davis exhibit notes that during the millisecond a bullet travels down the barrel, temperatures can reach 5000 degrees F, putting enormous demands on the integrity of the action. That reality is why repeating systems co-evolved with robust locking mechanisms—lever systems, rotating bolts, and later self-loading actions. When early or marginal lockup systems falter, the “malfunction” is not cosmetic; it is the mechanical boundary between a repeating tool and a dangerous failure.
Across centuries of small-arms engineering, the most impressive ideas tend to share one trait: they compress more capability into less space, fewer motions, or faster cycles. That compression is exactly what reduces tolerance for mistakes, dirt, weak ammunition, or marginal technique.
Brilliant design survives the first malfunction by making the recovery boring: a simple clearance drill, a predictable ignition event, or a feed path that shrugs off variation. The rest look futuristic right up until the sequence breaks.
