7 Hidden Reliability Red Flags Shooters Miss Before the First Range Trip

Image Credit to In-House CNC Service

A firearm may look ideal in case, may be cycling well at the counter and still reveal the signs of something being wrong. What is tricky is that most reliability issues are silent at first, they manifest themselves through minor fit problems, odd friction spots or even parts that are merely out of spec. A bit of inspection and dry handling most always before the first trip to the range will show whether a gun will run—or will take an afternoon of freezing that is charged to bad ammo or a break-in.

Image Credit to cerusgear.com

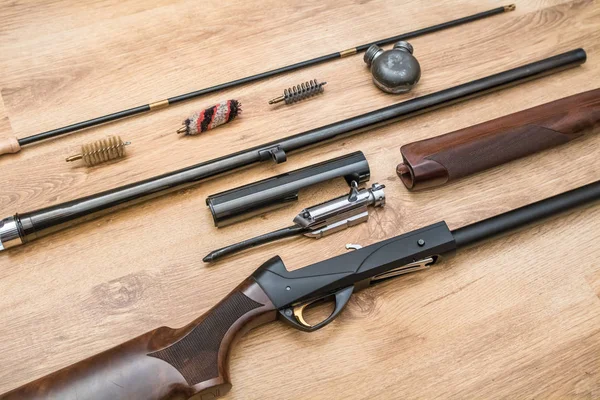

1. A Bore clean and yet showing heavy copper

A bore may be shiny and contain copper fouling, particularly when the previous user (or factory testing) left a lot of it than anticipated. Accumulation of copper can alter evasion and may cause a rifle to behave on a shot to shot as indicated by an apparent accuracy that vanishes with no apparent explanation. Patch color during cleaning is one indicator that can be used in practice; one indication of copper still coming out is when the solvent dwell time results in blue staining.

Image Credit to depositphotos.com

According to one old-time rifle tester, clean barrels have a much higher hit rate than soiled barrels, and anything that is done in the name of reliability or consistency when the bore is still loaded with copper is a waste of time. To determine whether the barrel is really clean, not just swabbed recently, a strict regimen of copper-removal with an ammonia-based solvent is usually followed.

Image Credit to Wikimedia Commons

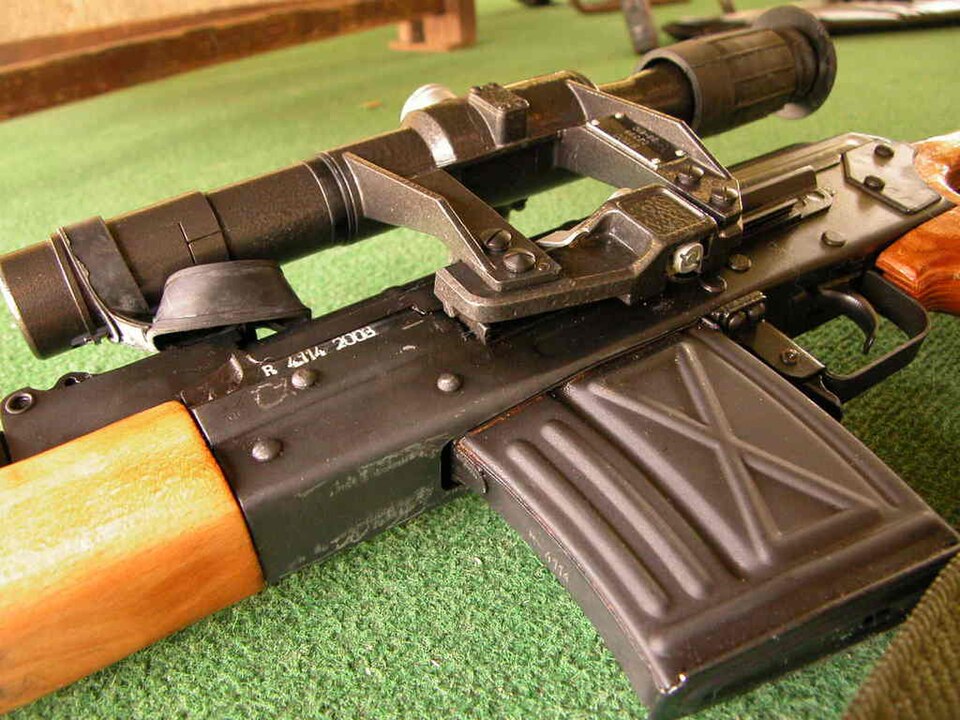

2. Optics and Mount Screws That Are Tightfeeling, but untorqued

Loose mounting hardware may pose as a malfunctioning gun, malfunctioning ammo, or shooter issue. Slightly under-torqued rings and bases can walk due to the accumulation of vibration and over-torqued screws can do it themselves as they cause parts to be stressed or threads to be stripped. A rapid pre-range test must consist of assuring that nothing moves under hand pressure, and that fasteners have been tightened to known standards, e.g. 20 inch-pounds of screws connecting 6-48 rings and base (although lower values are sometimes used with aluminum). When an optic has already been mounted the slightest movement is the warning-flag-since it often comes to a good deal of movement when recoil and heat make their appearances.

Image Credit to Cerus Gear

3. Magazines That Fit in Fine but Not Locking Like It Mean It

Several shooters confirm that a magazine is inserted but do not confirm that it is designed to lock with a tug, and remains locked. The issues related to magazines are positioned in the background of a high percentage of semi-auto problems, particularly when the lips of the feed are a bit out of scope, springs are of low quality, and where the followers bind. A magazine which requires additional pressure in order to seat, which has unevenly spaced seats, or which swings about, is a prelude to trouble in attaching fire, even before it burns. Even a basic dry test can indicate issues, such as inserted firmly, audible/physically locked, and then pulled and the gun starts misbehaving: a simple dry test will often indicate the problems, which will only become worse when the gun is dirty or the shooter begins to move.

Image Credit to Public Domain Pictures

4. Nose-Up Feed Path during Slowness in Manual Cycling

There are even some cessations in advance of the opening shot, and that is what to consider. A nose-up failure to feed is one of the patterns, with the bullet nose facing upwards and the slide stopping short of battery. When this occurs during a gentle, slow hand-cycling, with the right magazine loaded, then it tends to indicate an issue with geometry or timing: the angle of presentation of the magazines, the behavior of the recoil springs, or the tension of the extractor, or a lack of compatibility of the feed ramp/throat geometry of the gun with a given bullet profile. The red flag is repeatability-when it occurs more than once in controlled circumstances it is worth diagnosis, not the reliance of the set-up.

Image Credit to depositphotos.com

5. Recoil Spring Behavior That Seems to Be Fast or Lazy Returning to Battery

The speed of returning to the battery is not an issue to pay attention to until feeding becomes random. Excessive tension in the spring may cause the rounds to be fired in an unfriendly manner, excessive tension will cause the slide to have insufficient energy to slide the load into place. The signs of early trouble include chambering that is not consistent upon releasing the slide out of lock, slow forward motion or a slide that seems to be wavering towards the end of the travel. Since recoil springs are involved with magazines, ammunition and extractor tension a marginal spring may conceal itself during normal handling and then reveal itself as intermittent stoppages when live fire is added, with its resultant heat, fouling, and varying grip pressure.

Image Credit to Cerus Gear

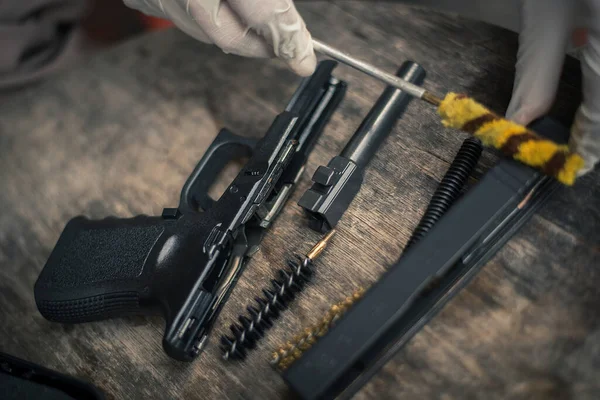

6. Missing Cleaning, Reassembly, or “Just One Small Part” Check After Cleaning

A significant number of first-range failures begin at the workbench: the part fitted slightly incorrectly, a pin not all the way in, an accessory striking on motion, a relationship in the safety/trigger area that was altered after assembly. A rapid functional test is intended to identify those problems at an early stage by verifying the essential mechanics performance, including the functionality of the trigger and the reset buttons, slide lock operation, a safety mechanism, and a basic cycling mechanism using inert rounds. The rule to follow the most breaks down to be the easiest to follow: function checks are only dry, and must never be carried out with live ammunition. The failure of a gun to pass a simple function test is an indication of a reliability issue even before the first round is loaded.

Image Credit to Wikimedia Commons

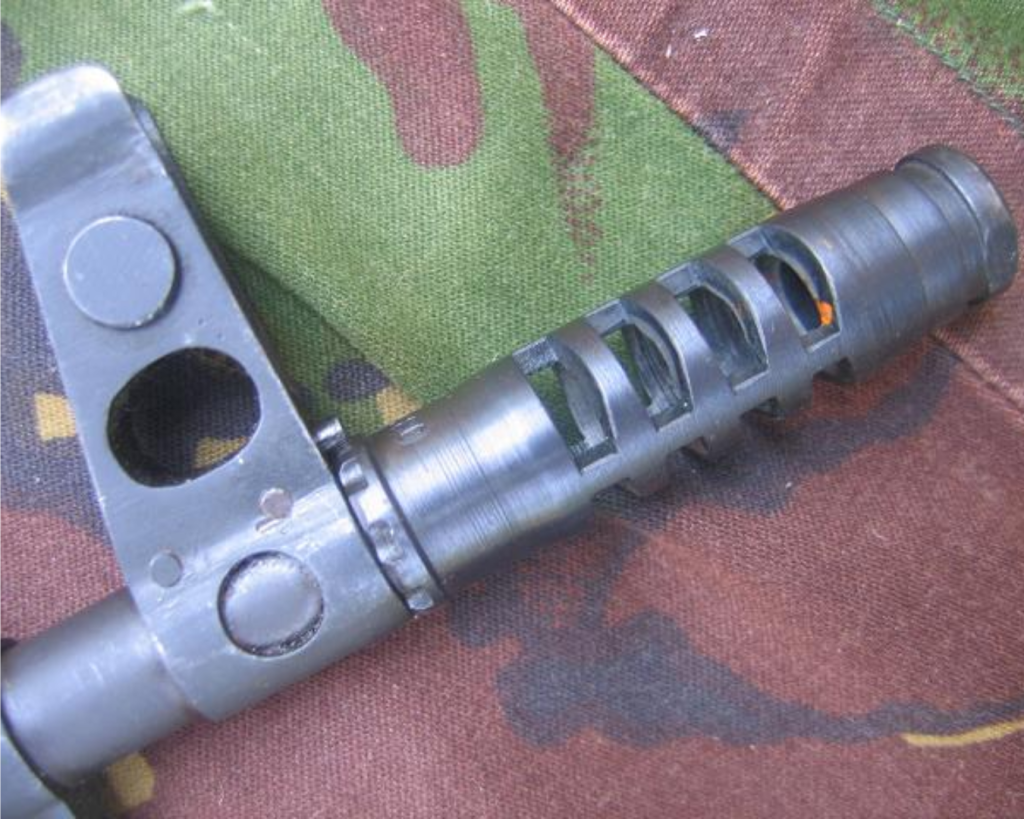

7. Muzzle Device and Crown Clues: Carbon, Misalignment or Contact Risk

At the rifles, minor problems at the muzzle may cause exaggerated problems. Carbon may build up to a point of getting inside some devices, and threads may wear off or be cut improperly allowing a brake or flash hider to be in the path over time. The red flag used practically is a lot of carbon packed where it is not supposed to be or any indicator that the projectile is clipping something on the way out which will destroy consistency in a short time. Another sleeper problem is the damage of the crown; the damage may be caused by abuse, wear of cleaning-rods, or slight deformities, without any apparent outward damage. A mere examination, light, magnification, and a thorough observance of symmetry, will oftentimes detect the imperceptibles of the naked eye.

Image Credit to depositphotos.com

Reliability does not just break down without notice, but it tends to leave behind traces of minute mechanical indications. The shooters who venture farther in the first range will be those who take those suggestions as action-able information as opposed to quirks. Other stoppages that become weeks of troubleshooting later are usually avoided by a brief post-range military inspection and fastener checks, magazine and real function checks.
