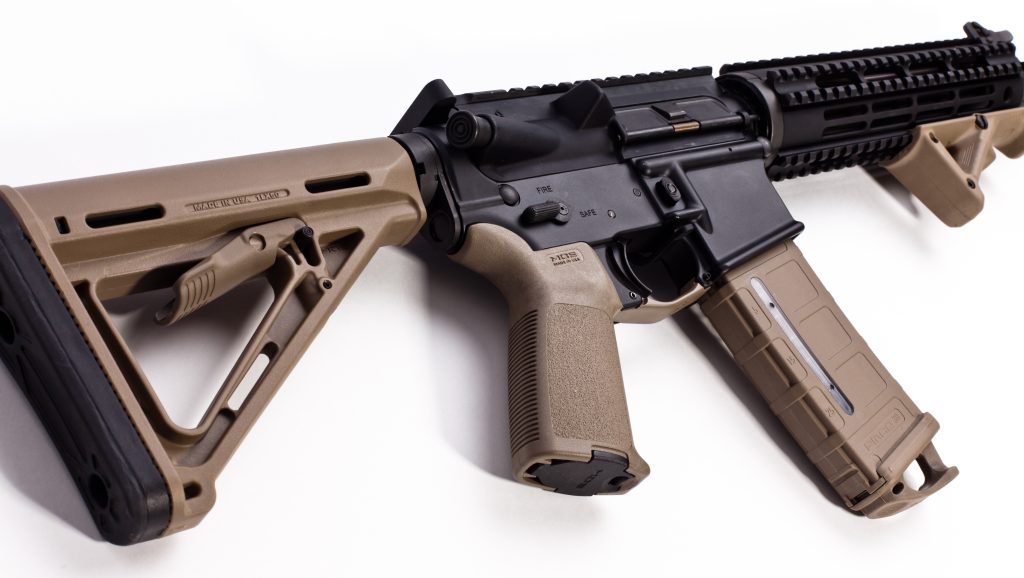

They toss around AR-15 “ballistics” as though it is one, constant set of figures. Practically, the figures oscillate in all directions with length of barrel, shape of projectile and what the bullet strikes when it comes out of the muzzle.
Next is a numbers-first examination of the real-world ballistics behavior of the AR-15, including the quantifiable results of the rifle, including velocity, pressure, depth of penetration, and the behavior of various loads in typical test media.

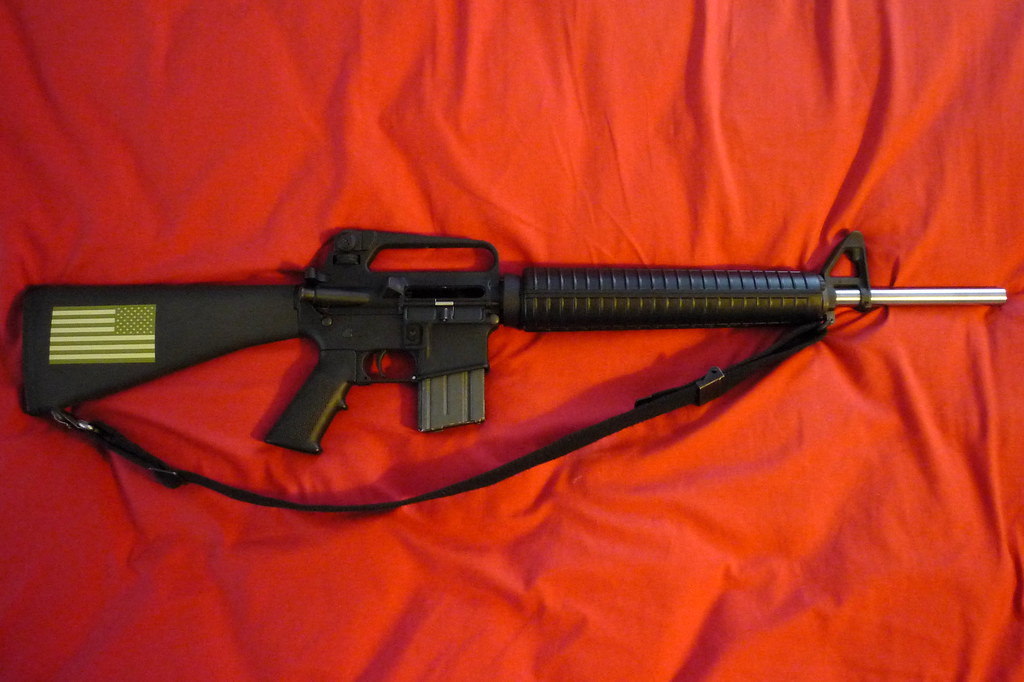

1. The bottom-line: A 20-inch-barrel is a 55-grain, at approximately 3,150 fps

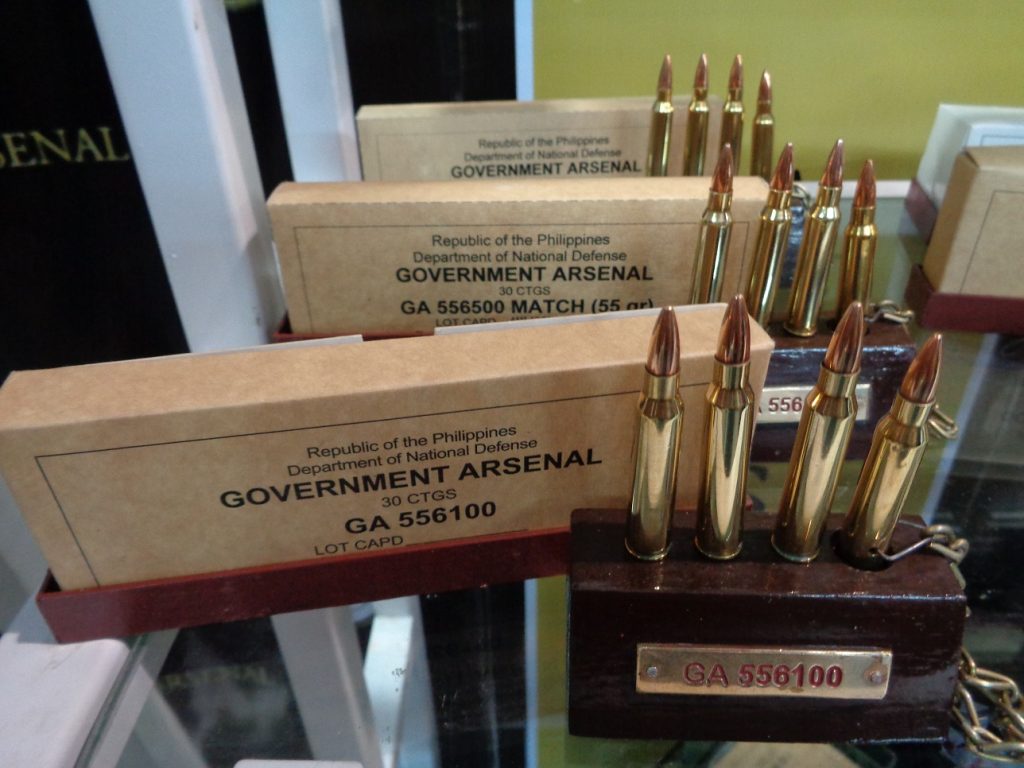

An 5.56 20-inch barrel and 55-grain projectile early-service pairing is a typical beginning point of 5.56 performance. The most famous spec has been quoted as M193: a 55-grain 5.56 projectile fired through a 20-inch barrel at 3,150 feet per second. That figure is important since it puts into context most downstream discourse, such as trajectory, the fragmentation limit of particular military loads, and what a shooter perceives as a snap or even flatness at range.
It also points to a practical fact which is that when the length of the barrel is reduced, velocity tends to decrease with it, and any mechanism, terminal in nature, that is sensitive to speed is made the more conditional. The AR-15 is not a single ballistic profile, but rather a family of ballistic profiles which begin with what can be offered by the barrel.

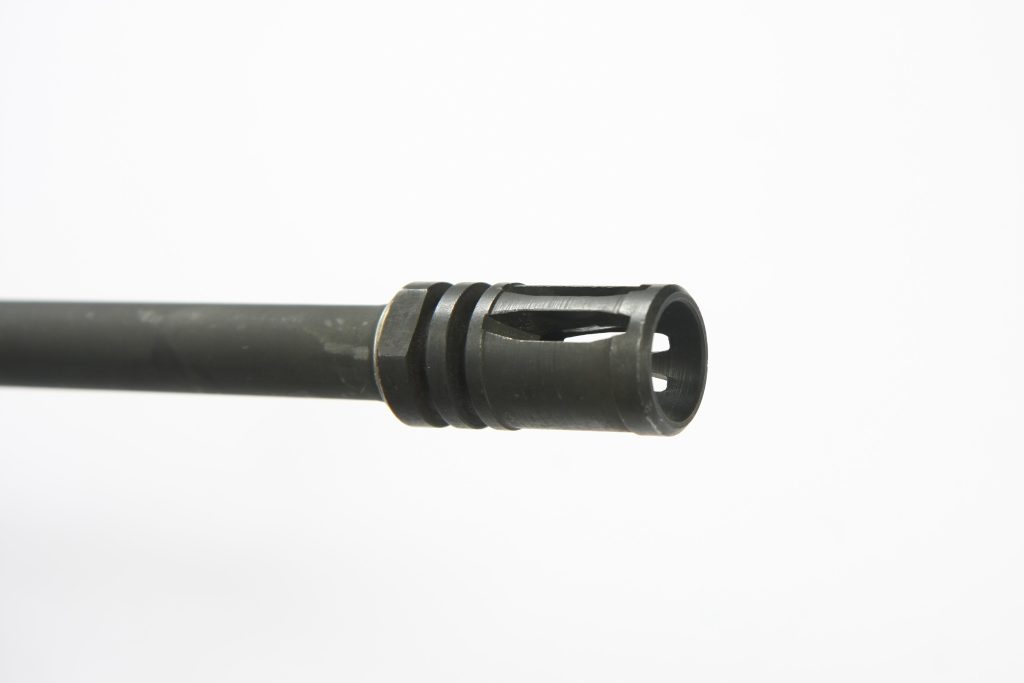

2. Brief barrels vary more than velocity: exit pressure rises at an alarming rate
When it comes to barrel length discussions, people tend to get bogged down when dealing with muzzle velocity only but there is also the change in the operating environment of the gun. There are observations recorded of data summarized of a cut-down test series that the pressure is nearly twice that at the exit where the bullet is in a 10.5-inch barrel compared to 20-inch barrels. The increase in uncorking pressure results in that increased blast, increased flash potential and a more violent gas environment within which the action occurs- particularly in compact configurations.
The same pressure differences also influence the perceptions of a shooter indoors: concussion and noise are never perceived as abstract feels: they are the effect of what the gas is doing at the point of exiting the bullet. That is, reducing the length of the AR-15 alters the physics of the muzzle and in the cycle, and not the reading of a chronograph.
3. The length of the barrel does not equate to the accuracy
Accuracy is mistaken with barrel length every time. The practical correction is elementary and mechanical: barrel length is not much a matter of inherent precision, and long, slender barrels may add to the whip. Once practical hits have been made, the velocity can be used to still enhance hits due to the drop and wind calls being simpler, but that is trajectory management- not the barrel being more accurate.
The difference is important as it distinguishes between two different number shooters are confused about: group size (mechanical precision) and come-ups/holds (external ballistics). AR-15 configurations are frequently optimized on the second, marketed as an addition to the first.
4. The design of the bullet determines what occurs after hitting and the diffusion is noticeable on gel
Following a short-barrel 5.56 test with an 11.5-inch AR three very different performances emerged with the same AR ammunition on the package. It was fired through a 6-inch gel section, and then through two sheets of drywall, through a 16-inch gel block, and out approximately 10 inches more on the other end. An almost 55-grain polymer-tipped defensive load the defense load had penetrated more than 3 inches into the gel block behind the drywall. A 75-grain charge that fit short barrels penetrated approximately 10 inches into that final block of gel as it expanded and retained mass.
These are not unobtrusive differences. They demonstrate how projectile-building (FMJ vs polymer-tip vs heavier controlled-expansion designs) can be important as much as caliber in terms of so-called overpenetration or in terms of stopping in the target.
5. There are two hit and miss tests: A hit and a miss differentiate in drywall tests
Home-material testing tends to divide into two realities, with rounds going through a soft-tissue simulant and not. In a wall-and-gel system with ordinary building materials, loads between platforms were more likely to penetrate much deeper when they were clean misses, since drywall in isolation is not a dependably destabilising and restraining medium, unlike dense media. The lesson gained in practice is not one of platform, but of physics: a bullet which never undergoes any serious resistance retains most of its momentum, and form.
This is also the reason behind the fact that this caliber is safe in walls does not pass the test of controlled testing. The outcome is altered by ammunition design and hit context, that which it transits initially.
6. A load of some 5.56 is reported to have stopped in the wall after 12 inches of gel
When a series of tests was performed on a 12 inch 10 percent gel block in front of an interior wall, a number of 5.56/.223 loads acted quite differently after leaving gel. Another illustration is a 62 grain bonded soft point load that penetrated the interior wall in 12 inches of gel and a 64 grain soft point that penetrated the wall with some cases of jacket separation. Other designs were torn off leaving only the base still going on, and this is how fragmenting can still leave an element that penetrates regardless of what is built.

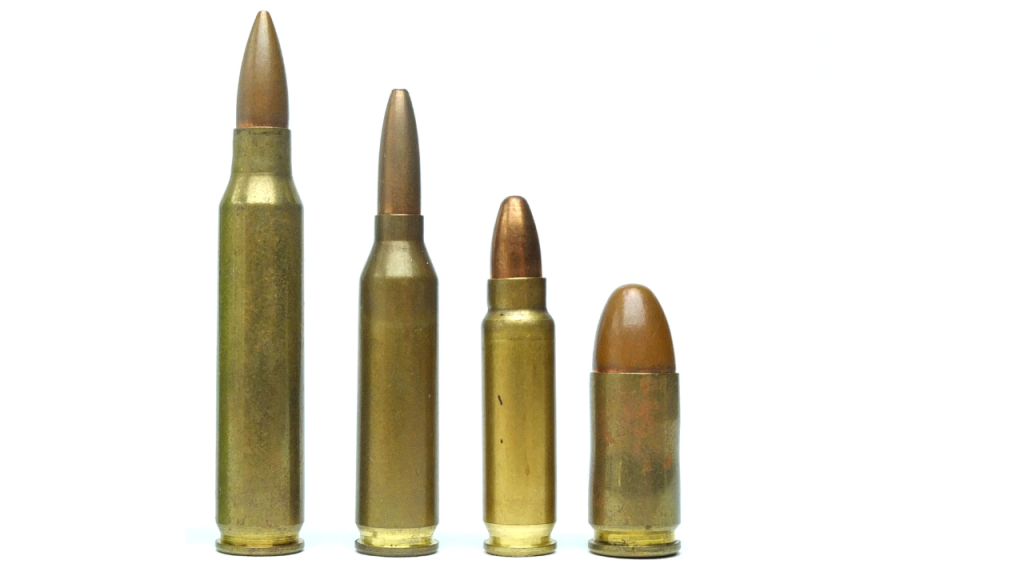

These results are the wake-up call that the statement that 5.56 penetrates less than pistol rounds is not always accurate, but may be accurate with certain loads under certain circumstances- particularly when the bullets are designed to expand, disperse or lose velocity quickly after passing through soft-tissues.
7. Chamber spec is a real number problem: 5.56 is a higher allowable pressure than.223
The external dimensions of 5.56 and .223 are almost the same, whereas pressure ceilings are spec different. Another widely quoted max is 55,000 psi on.223 Remington and approximately 61,000 psi on 5.56 NATO. That is one of the reasons why chamber markings are important: chamber geometry and freebore are all of chamber safe and chamber reliable pressure tolerance.
Practically, it is a ballistics problem since pressure determines the potential velocity, cycling, and the action of a given load in some certain barrel length. It is not only a labelling particularity.
8. Barrel life is a quantifiable constraint, but it is rarely the limiting factor for most shooters
AR-15 barrel life discussions can get abstract until the round counts are put in context. A cited average is about 20,000 rounds for barrel life. At a pace of 100 rounds per month, that spans roughly 16 years of use; higher-volume competitors can burn that in a single year. This is the hidden “numbers” reality behind ballistic consistency: high-heat, high-volume schedules change throat erosion and velocity spreads faster than casual use.
Barrel life also ties back to configuration choices short barrels and aggressive gas setups can be harder on parts, but round count and heat are the long-term drivers that show up on paper and on steel.
The AR-15’s ballistics are not a single story. The measurable outputs velocity, exit pressure, penetration depth, and post-impact behavior shift with barrel length and projectile engineering in ways that are easy to miss in caliber only debates.
The most stable conclusion the data supports is narrow but useful: when the conversation stays anchored to specific loads, specific barrels, and specific test conditions, the “myths” fall away and the numbers become readable.
