FBI gel testing remains one of the most useful ways to compare handgun ammunition, but it is often treated as a full simulation of what happens in a human body. It is not. Properly prepared gelatin can track penetration, expansion, fragmentation, and retained weight with strong consistency, yet those numbers still describe a controlled medium rather than a living target.
That distinction matters because handgun performance in the real world is shaped by anatomy, angle, clothing, intermediate barriers, firearm setup, and the shooter behind the gun. The FBI protocol is a benchmark. It is not the whole picture.
1. Gelatin Is a Comparison Tool, Not a Human Replica
Calibrated 10% ordnance gelatin is valuable because it is consistent and repeatable. That allows one load to be compared against another under the same conditions. It can show whether one bullet expands more, penetrates deeper, or holds together better than another. What it cannot do is reproduce the full complexity of living tissue, which includes skin, fat, muscle, connective tissue, organs, and bone arranged in endlessly different ways.
Research literature has shown that gelatin can approximate soft-tissue penetration and permanent damage patterns in a useful way, but it remains a stand-in. Real bodies are not homogeneous blocks, and handgun bullets do not move through them in neat straight lines every time.
2. Bone Changes Everything
One of the largest blind spots in gel-only thinking is bone. A bullet that looks orderly in a clear block can behave very differently after striking a rib, sternum, arm, pelvis, or skull. Bone can slow a bullet, redirect it, prevent a hollow point from expanding as intended, or break both projectile and bone into secondary fragments.
That means a round that appears ideal in bare gel may produce a far less predictable path in an actual shooting. Some researchers and agencies have tried to address this by embedding ribs or using more anatomically realistic targets, but standard FBI handgun testing still centers on gelatin behind barriers rather than complete body analogs.
3. The Dramatic Gel “Cavity” Often Misleads Viewers
High-speed footage of gelatin can make handgun rounds look far more destructive than they are. The temporary cavity visible in gel is visually impressive, especially in synthetic media, but handgun velocities rarely create stretch effects in tissue that reliably add major wounding beyond the bullet’s direct crush path. In practical terms, permanent cavity and penetration depth matter much more than the splashy moment seen on camera.
Informal testing often treats torn gel as proof of “stopping power.” That interpretation is not supported by the test medium itself. The visible disruption can show when a bullet started expanding or yawing, but it does not map cleanly onto tissue damage in the body.
4. The 12- to 18-Inch Rule Was Built for a Specific Mission
The widely cited 12-to-18-inch penetration window was developed to ensure duty ammunition could still reach vital structures after clothing, limbs, glass, wallboard, or vehicle materials interfered with the shot. That makes sense for law enforcement, where shootings can involve oblique angles, vehicles, and partial cover.
It does not mean every user has the same performance priorities. The FBI standard was designed around a service role, not around every possible civilian defensive environment. Gel can confirm whether a load meets that standard; it cannot decide whether that standard reflects the exact tradeoffs of a hallway, apartment, or crowded public space.
5. Clothing and Barriers Can Flip Bullet Behavior
Heavy clothing can clog hollow points. Wallboard can turn them into non-expanding slugs. Auto glass can deform them so badly that expansion, weight retention, and trajectory all change. Testing repeatedly shows that barriers can transform a promising gel performer into something much less orderly.
A load that looks balanced in bare gelatin may penetrate much deeper after denim or drywall delays expansion. In barrier work, some rounds also deflect or shed parts of the jacket. The FBI protocol accounts for this with multiple events, but people who focus on a single bare-gel shot are looking at only a small slice of real-world performance.
6. Short-Barrel Pistols Can Undercut “Proven” Loads

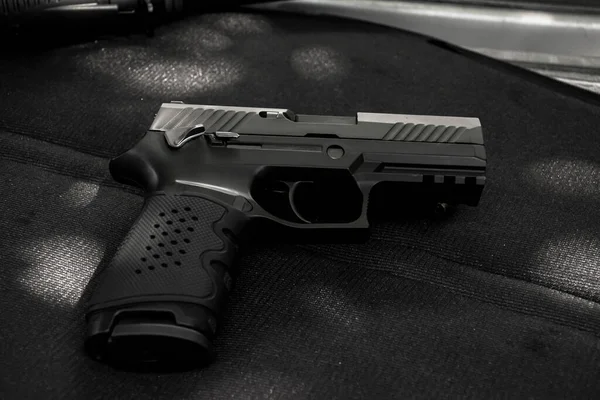

Duty ammunition is often discussed as though every handgun launches it the same way. It does not. Compact and subcompact pistols can reduce velocity enough to alter expansion reliability, especially with bullets designed around service-length barrels. The result is that an excellent load in a duty gun may behave differently in a concealed-carry pistol.
Independent testing with short carry guns has shown meaningful variation from one shot to another and from one barrel length to another. In the real world, handgun performance starts with the pistol actually being carried, not the test barrel printed on a box.
7. Shot Angle Matters More Than Most Charts Suggest
Gel blocks are tidy. Human movement is not. A bullet may have to pass through an arm before entering the chest, or travel diagonally through the torso rather than straight front to back. That is one reason the FBI minimum exists at all: a shot that looks shallow on paper can become inadequate once the body is turned, crouched, twisting, or shielded by its own limbs.
This is where simple caliber arguments often break down. The problem is not only bullet diameter. It is whether the projectile can still reach something vital after the body presents a difficult path.
8. Handgun Outcomes Depend on More Than Bullet Design
Studies and anecdotes have long conflicted on “stopping power,” and that disagreement is not just academic noise. Handguns are limited tools, and outcomes vary widely even when bullets appear effective on paper. As one testing source put it, handgun bullets mostly “poke little holes in stuff”. If those holes do not disrupt something essential, immediate incapacitation is not guaranteed.
Shot placement, penetration, and reliability remain the core variables. Gel can address only one part of that equation well. It cannot measure decision-making, speed, recoil management, follow-up shot quality, or whether a specific pistol cycles a given load without issue.
That is the practical limit of the FBI gel standard. It is excellent at showing what a bullet tends to do in a controlled medium after defined obstacles. It is much less capable of capturing how a violent encounter actually unfolds.
For that reason, the most useful reading of ballistic gel is a narrow one: compare loads, verify consistency, and identify obvious weaknesses. Beyond that, real-world handgun performance still depends on anatomy, barrier interaction, firearm configuration, and the person pressing the trigger.
