The history of handguns is inclined to glorify the noisy moments: a well-known contract, a cameo on the battlefield, a movie close-up. The larger change usually occurs elsewhere, within the receiver, in the form of a spring or in the form in which a magazine displays a cartridge.
Then there is the design-oriented analysis of pistols whose impact surpassed their backgrounds. The actual change, in a number of instances, was not an individual model, but a mechanical concept that continued to reoccur until it became customary.

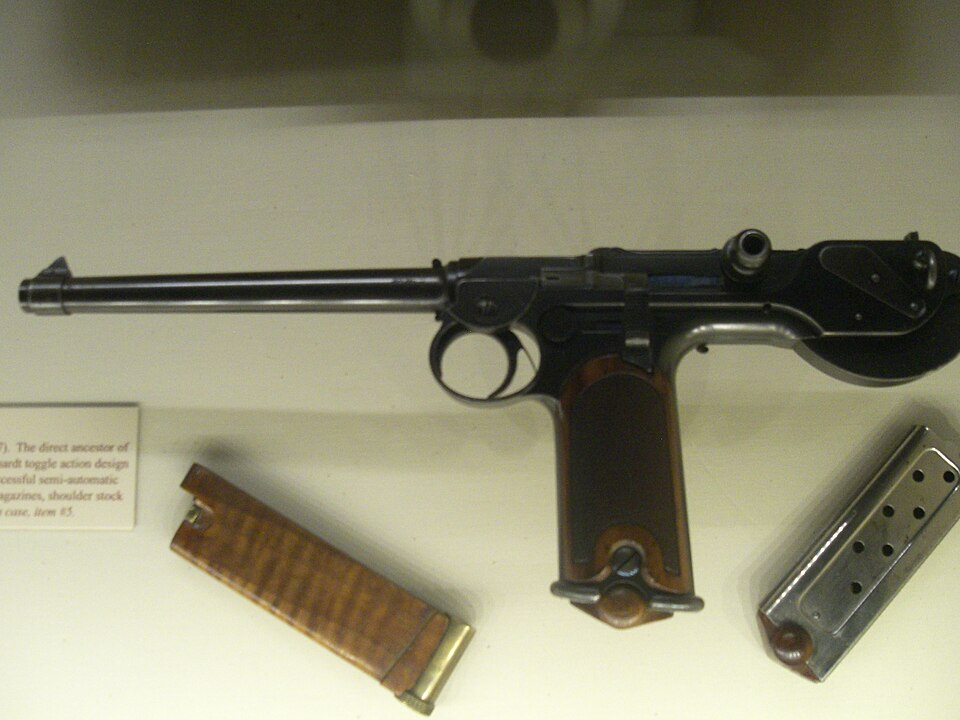

1. Borchardt C93 (the first striker-fired template)
The self-loader of later pistols seems to be the inevitable one, yet the self-loader of the late 19 th century was nothing of the kind. The Borchardt C93 is not an important carry-gun in itself, but an indication that a self-loading pistol may be designed on a striker-fired principle, and still be operated as a workable repeating rifle. With the shooting mechanism incorporated into the slide line instead of a hammer suspended on the back as with the C93, the C93 foreshadowed a more streamlined exterior appearance that would be addressed in the future as modern.
The pistol was also instrumental in sugar coating the perception that the reliability of a semi-auto was dependent on the entire system; feed geometry, recoil operation and ignition and not on any individual component. The C93 left a mechanical vocabulary that was used by designers who borrowed, even when later designs were superior.
2. The system with the influence of Maxim: toggle-breech with modification (to pistols).

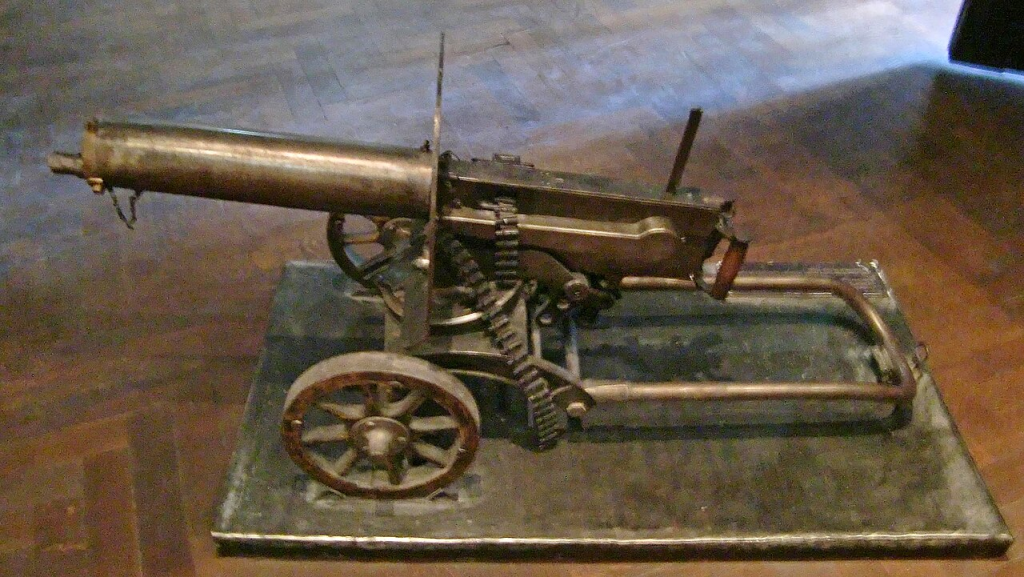

Much of the early handgun development was surprisingly by derivation of the principles used on other weapons. One of the rotations made by the Borchardt operated by a revolutionary mechanism of toggle-breech that was attributed in principle to Sir Hiram Maxim. The toggle in pistol format provided a unique lock/unlock method in recoil which was quite unlike the tilting barrels which subsequently became the order of the day in service handguns.
Although the toggle mechanism failed to become the standard “default system, it altered perceptions of what locking would be like in a small arm-and it demonstrated that pistols could be a subject of serious engineering as full-size long guns. The legacy is not so much of imitators but of lifting the ceiling of mechanical aspiration of the handgun design.

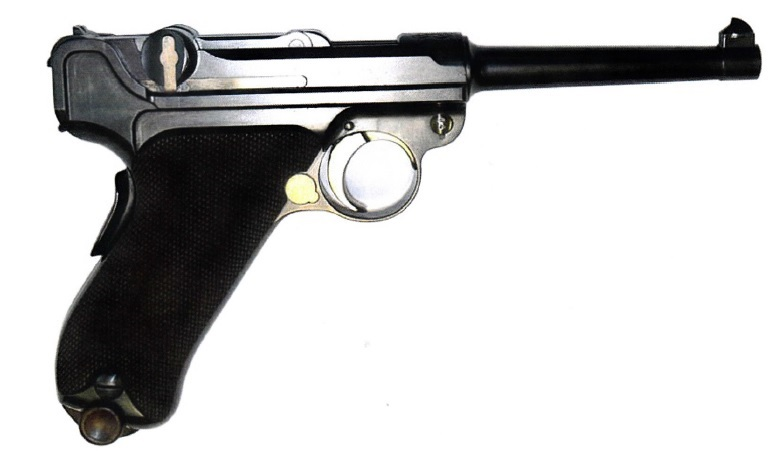

3. Bochardt had been redesigned by Luger in 1900 (into a self-loader) to be a livable space.
The most important contribution was made by Georg Luger who did not create an entirely new pistol. It was the art of taking an actual working concept and making it easier, cleaner, more convenient to hold and point. According to the reference material, the overhaul was radical with Luger patenting a light, simpler, and easier to manufacture pistol that also enhanced the handling qualities.
That strategy – refinement as the breakthrough – became one of the leading trends in the engineering of handguns, in a hereditary silence. Numerous subsequent so-called new pistols are actually an evolution of edits of a previous mechanical concept, carried out to the point of platform proliferation.

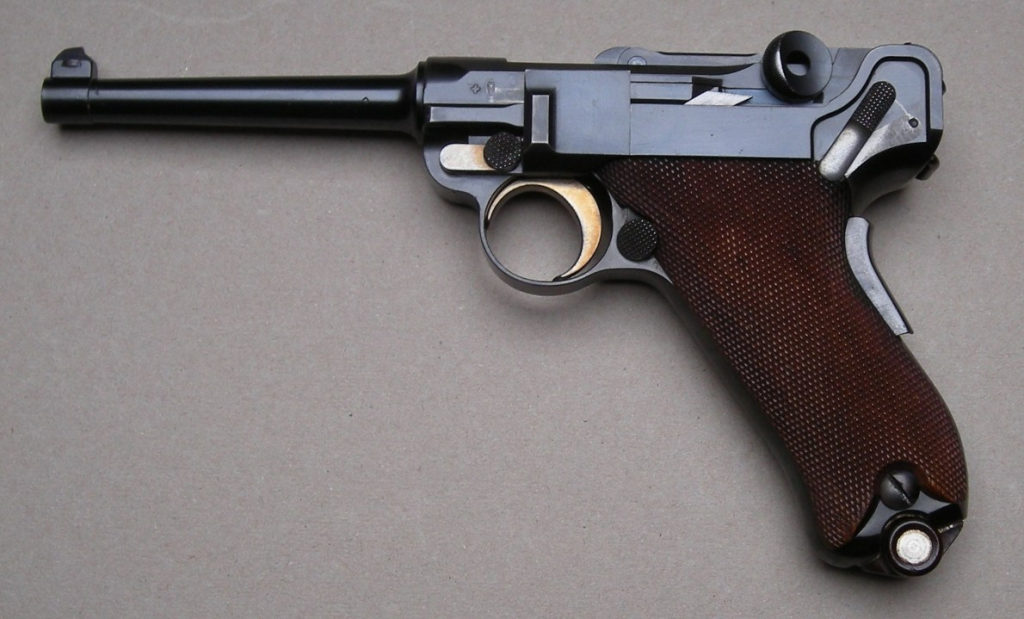

4. Luger Model 1900 safety of grip (user-interface safety concept)
The Luger Model 1900 provided a safety mechanism that looks like an ergonomic choice, rather than a mechanical one: an exclusive grip-safety device that was designed to ensure that the pistol could not fire unless it was fired in a normal grip. That a particular shooter prefers grip safeties is a red herring; the feature was an initial effort to attach the process of making a pistol safe to physically engage with the pistol.
That concept, safeties as a human interface, became a repetitive design path. Subsequent pistols employed alternate designs and ideologies but the broader shift was to conceive safety as not a distinct lever on its own but as a feature that could be incorporated into the method of natural grip and carry of the gun.
5. The 9x19mm Parabellum chambering (caliber standardization of the modern service)
Pistols are molded by cartridges rather than slides and springs. In 9 mm Parabellum, when DWM produced the Model 1902, it contributed to establishing the prerequisites of a century of standardization of handguns and submachine guns. The source information points out that the 9 mm was to become the most common pistol and sub machine gun cartridge in the world, and that universal use had engineering effects: frame size, magazine design, recoil mechanism optimization, and even training philosophy all gravitated around a single common pressure and performance level.
When a cartridge is ubiquitous, it is now a design anchor. Manufacturers are able to optimize well-known dimensions, well-known recoil behavior, and well-known supply chains. In that regard, 9x19mm did not simply win a popularity contest, it formed that general standard on which the modern development of pistols could speed up.

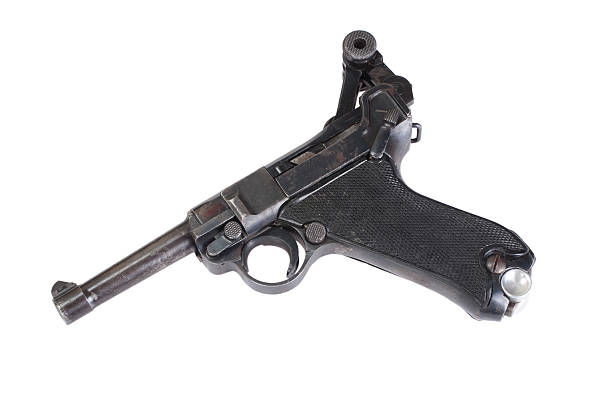

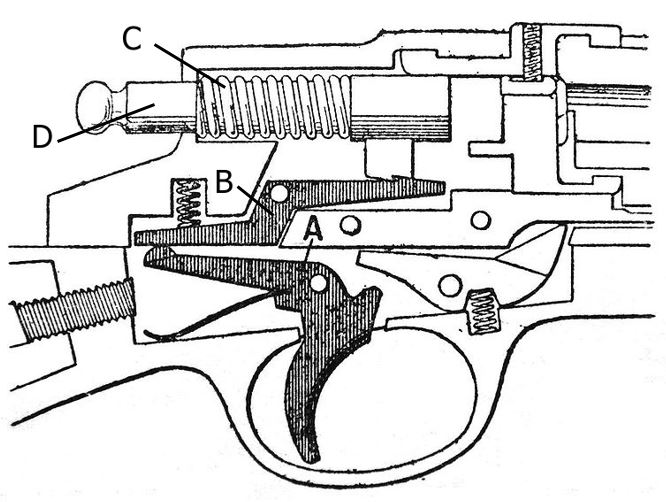

6. Coiled mainsprings, as opposed to flat mainsprings (dependability by small parts)
The changes that have affected the design of handguns the most have been in the grip. The transition of the Luger Model 1906 to a coiled rather than a flat mainspring was an indicator of a more widespread industrial favorability to springs which are easier to manufacture in large amounts and which are more resistant to repeated cycling. The given change is so considerable that it is the reason to separate Lugers into the Old Model and the New Model.
Such internal redesign is seldom accorded the glamour of a new shape, but in many cases reliability and manufacturability are enhanced in such a redesign. Throughout engineering of firearms, coil springs have been used again and again in place of leaf and flat springs due to their ability to accommodate variance and fatigue otherwise- and their more lenient nature towards mass production.

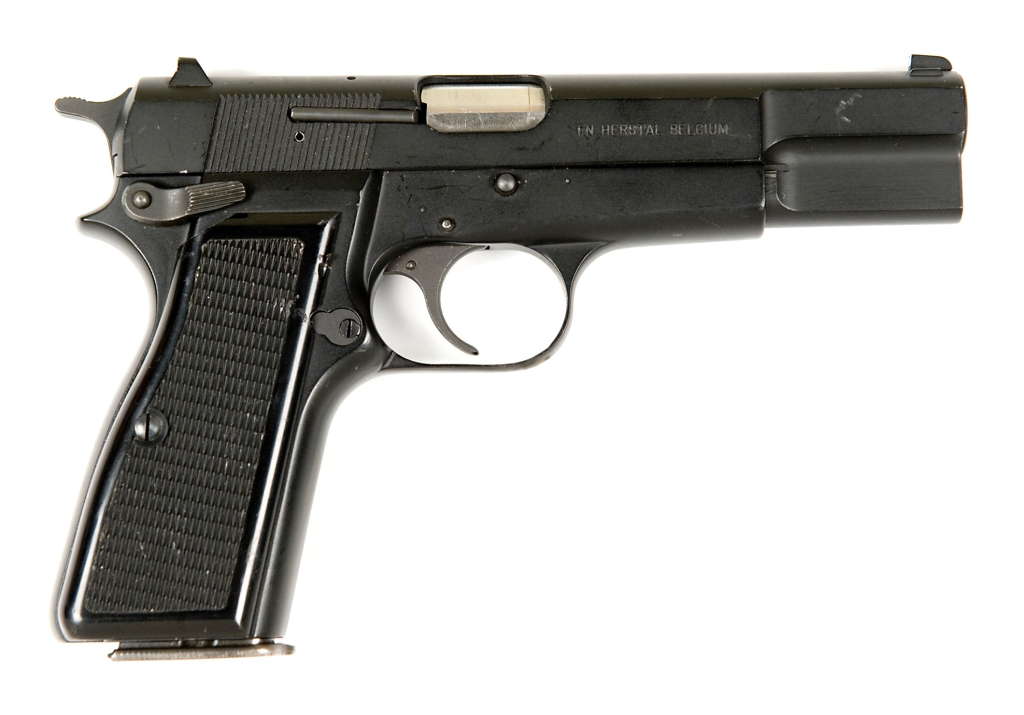

7. The double-stack magazine idea (capacity and a big grip) of Browning Hi -Power
The Browning Hi-Power never had a single contour line as its most lasting impact, however, it was the packaging innovation of a large magazine and could still fit into a serviceable grip size. The reference discussion refers to Dieudonne Saive developing a pistol that expanded out of a 13 rounds double stack magazine design linked to the final patent work on the pistol by John Moses Browning. However much of the credit may go to Browning and Saive, the product of the design was that increased on-board ammunition became compatible, in the size of a duty handgun.
Such a shift of silence became a design requirement. When the shooters and agencies got reliable service grade capacity in a conventional belt gun, the center of gravity in the industry changed. The wish to have capacity was not invented by later wonder-nines and modern polymer service pistols but inherited.

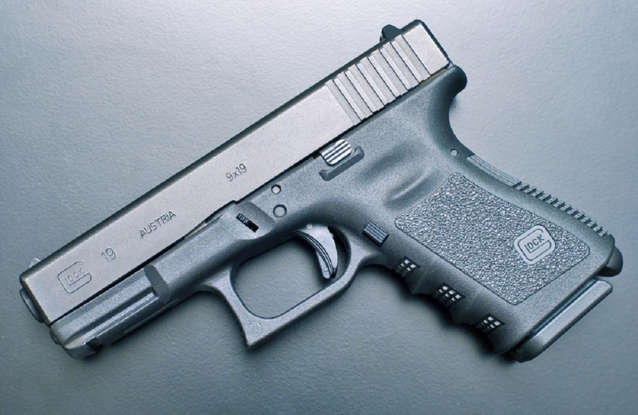

8. Glock 17’s polymer-frame striker package with internal safeties (the modern baseline)
The Glock 17 compressed several trends into a single, reproducible system: a polymer frame, a striker-fired action, and a safety concept built around internal mechanisms rather than an external manual lever. The reference material describes Glock’s “Safe Action System” as relying on multiple internal safeties trigger, firing pin, and drop safety while eliminating the need for a traditional external manual safety in normal handling.
Equally important was what the Glock 17 made routine: a consistent trigger feel from shot to shot in a duty pistol, minimal external controls to snag or mismanage, and weight savings without abandoning service durability. Even competitors that diverged in details ended up responding to the same baseline the Glock established for what a “modern” general-purpose handgun should feel like and how it should be assembled at scale.
These designs did not all dominate the market forever, and several were quickly surpassed by later work. Their lasting impact came from something subtler: they changed what engineers considered normal how a pistol could lock, fire, carry ammunition, and keep itself safe under stress.
In that way, the “quiet” revolutions tend to be the ones that survive the longest: a spring choice, a magazine shape, a firing system, or a cartridge that becomes the industry’s default assumption.
