The majority of pistol malfunctions start with the small inconveniences of a highly synchronized machine. The cartridge is pushed by a fraction of a degree, a spring is depowered a bit, a safety part is not restated with authority. What comes next can be a mere click or it can turn out to be an issue that requires time, dexterity and space to resolve.
Details of design are important since semi-automatic pistols require a precise cycle which is feeding, chambering, locking, firing, unlocking, extracting, ejecting and cocking. Small problems are likely to multiply when that chain becomes sensitive to dirt, or tolerance stack, or non-uniform magazines.

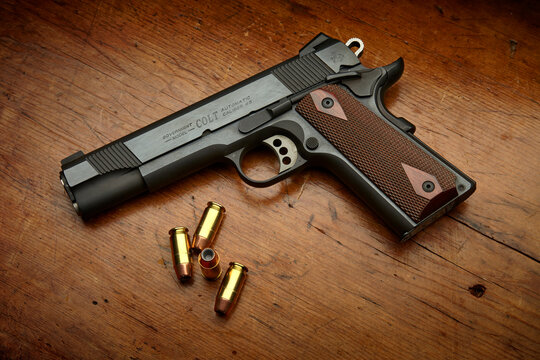

1. Invites premature lock-back Slide stop geometry
An erroneously positioned slide stop, one that is too proud of the frame window, has marginal spring pressure or one that offers the incorrect shape of ledge may become wedged open with rounds still in the magazine. The shooter is frequently subject to the spontaneous dead firing and an open action halfway through the string. Others use the internal spring to hold back an upward movement, and 1911-style pistols have an external plunger system, in either case a weak or damaged spring can fail, or magazines can strike the stop with the wrong part. The lever can also be contacted by the shooter grip during recoil and therefore marginal designs are more likely to convert a small contact of the thumb into a complete stop.

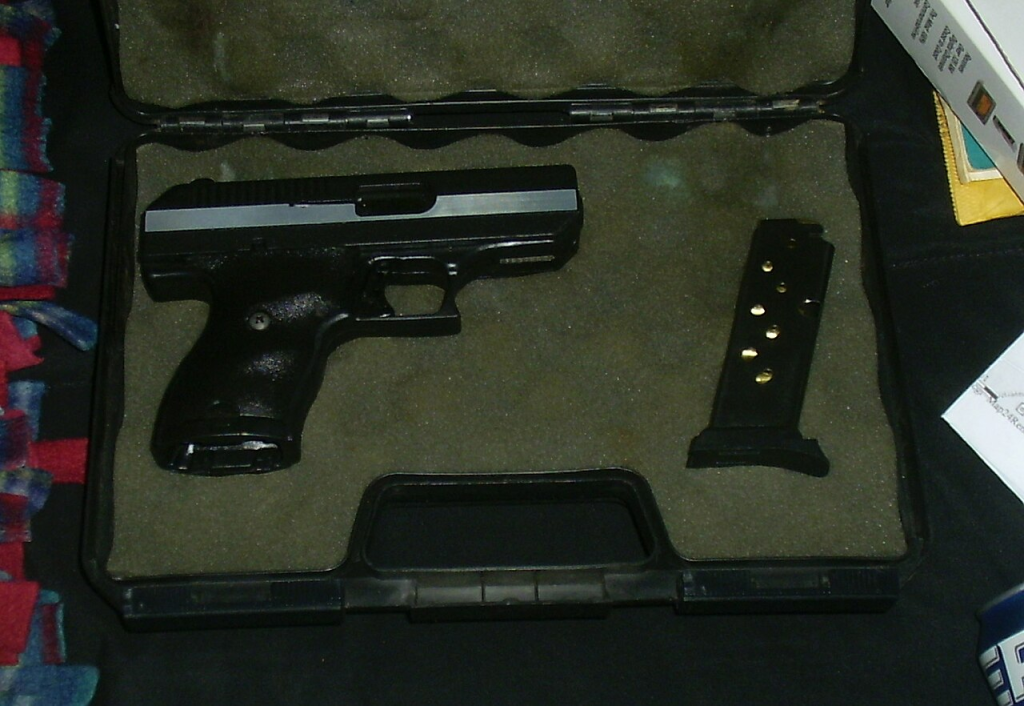

2. Permission to sit partially in magazines and magwells
A pistol that fails to decisively confirm magazine engagement may configure a fakedly grave feed issue: the initial round will be loaded but the later rounds will be low to the point that they get covered by a slide face. This is usually associated with the association of the magazine notch and magazine catch as well as tolerance to debris in the magwell. With the inability to fully engage due to dirtiness or out of spec components, the action may skip the next cartridge and clamp down onto an empty chamber to recreate a feeling of misfire.
3. Over sensitive feed ramp layout
Other feed systems penalties such as short overall length, blunt projectile shape consist of pushing the cartridge into the ramp in a nose-down orientation. Frame ramp theories Applicable to designs that employ two-piece ramp (frame ramp and barrel throat) designs may introduce a seam or misalignment that enhances friction. The slide may become stagnant and halt short due to an incompatibility of the ramp finish, angle and cartridge presentation, instead of the pistol jamming temporarily.
4. Too early or late round release in the magazine feed lip design
Feed lips control timing. When they are spaced, distorted or bent to fit the feed path of the pistol incorrectly, cartridges may pop out prematurely, rise, and become lodged over the wall of the chamber with their nose up. In case release is delayed, the round might not lift clean out of the extractor resulting in its misalignment, which carries forward into a stoppage. Since this mode of failure occurs at the border of magazine, extractor, and chamber, any slight variation is likely to create unstable malfunctions that are hard to identify on the line.
5. Extractor tension not designed to maintain controlled-feed.
Numerous pistols have been developed as controlled-round-feed systems, in which the extractor has been used to assist in placing the case head in the chamber. With excessively tight or loose extractor tension, the rim of the case may not fit into the chamber as it rises up the breech face. The outcome can be nose-down jam, a half chambering, or a failure which appears to be caused by ammunition when in reality it is a geometry-spring fight.
6. Narrow passage and limited caliber that increase carbon and out-of-spec ammunition
A chamber with low tolerance can operate very well when in clean condition, and then suddenly start to give failures to re-enter battery as foulness sets in. Ammunition may not immediately open because of carbon, dirt, or minor dimensional problems which causes the slide to be slightly out of battery and the pistol cannot shoot. Even in systems where locking surfaces may not contact, debris may prevent the final fraction of slide travel, reducing regular fouling to a non-shooting state.
7. Choice of recoil springs that is resultant in inadequate operating margin
Recoil springs wear out, and spring designs which require a small range of spring force are likely to develop stoppage tendencies as the spring gets older. In case of insufficient spring force, the slide can fail to go back to battery with force. Excessively high causes the slide to prematurely short-stroke or excessive magazine rise resulting in randomly appearing feed problems. Replacement intervals are often used as a guide between platforms and usage, with 1,500 rounds being a more conservative estimate used by Wolff Gunsprings Inc, though various shooters have carried out more frequent tracking of the changes in performance and in ejection pattern.

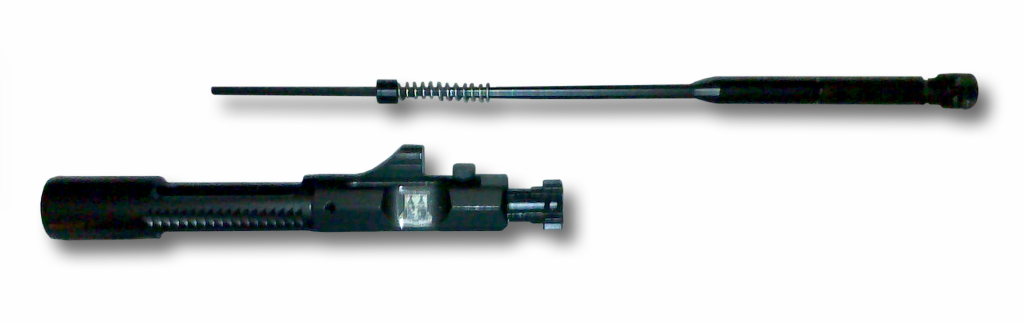

8. Designs that trap fouling and slow striker travel Firing pin channels
Strikes of the light primer can be attributed to the ammunition however, striker and firing pin systems that build debris in the channel may decrease the energy of the strike. The pistol might be experiencing a mechanical issue that is obscured by a shallow dent on the primer when the pistol is only showing a shallow imprint: a low-quality ignition and the possibility of a slow discharge. A hangfire is not common, but it is not insignificant, and the probability of a hangfire is increased in the cases where the travel of strikers is impaired by foul and impregnable reset.
9. Hard-to-check and easy-to-overlook drop-safety systems
In modern pistols, the firing-pin safety is normally a spring-loaded mechanism which prevents forward movement until the trigger is pressed. When the part is stuck, wears, or obstructed we may find the pistol transitioning between safe handling margins to uncertainty around handling the dangerous parts during impact or during incorrect assembly. A simple basic function test would be fieldstripping to the slide, and ensuring that the firing pin does not sticking out unless the safety in question is depressed, which would be typical of a basic slide only test.

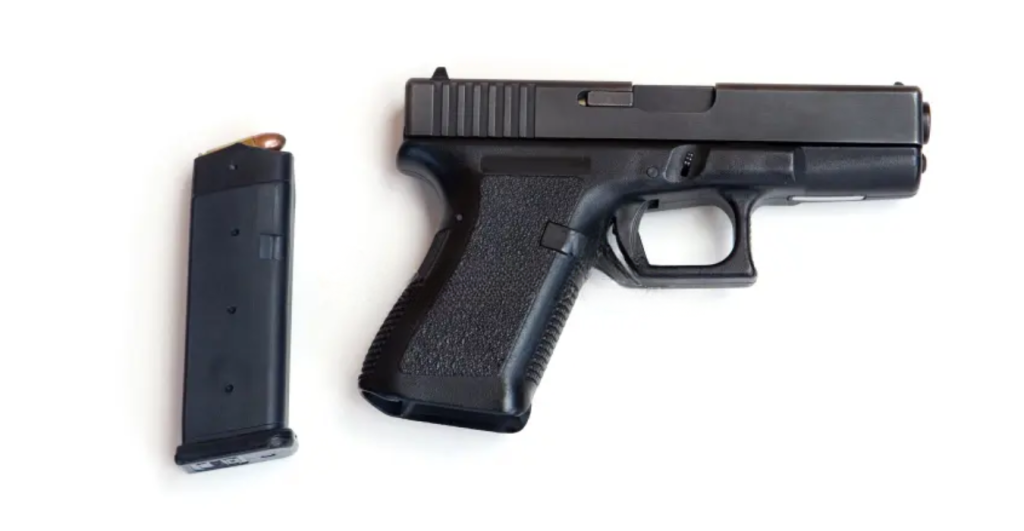

10. Magazine-dependent safety features that change malfunction behavior
A magazine disconnect prevents firing with the magazine removed, even if a round remains chambered. This can convert a minor magazine seating error into a total no-fire event, especially during administrative handling or after a partial mag drop. It also changes how certain stoppages are cleared and verified, because the pistol’s ability to fire no longer reflects chamber status alone. In a system where magazines are already a major failure point, adding another dependency can magnify the consequences of a small magazine problem.
Across platforms, many “mystery malfunctions” trace back to a few mechanical junctions: magazine fit and feed control, extractor-assisted alignment, and the small safeties and springs that gate ignition. When those areas are designed with narrow tolerances and limited fouling margin, ordinary wear and routine debris become reliability multipliers.
The practical takeaway is that a pistol’s safety and reliability are often determined less by the headline features and more by the quiet engineering choices that control timing, alignment, and spring energy throughout the cycle.
