“It is not just a single failure mode of the mega-solar storm. It is a systems issue: power and matter come in through the Sun, magnetic space restructures, and technology that relies on constant fields, constant orbits, and constant radio channels starts to malfunction usually all at the same time.
This is because engineers are likely to pose two practical questions. What fails first? And what spreads out faster than that, into other networks which were supposed to be autonomous, are the first failures to distribute through? The next step is a guided exploration of the initial breakpoints and the faster-than-anticipated routes that allow one disturbance due to space weather to propagate through the contemporary infrastructure.
1. Collision avoidance in low Earth orbit
The first failure in crowded orbital shells is not a hardware failure in the traditional meaning of this term but the operational control: the process of predicting positions, giving commands, and performing avoidance maneuvers all continuously. A study on mega-constellations outlines a regime to the effect that, in constellations, close approach events, two satellites within less than one kilometer of each other, occur roughly once every 22 seconds, and that frequent routine course corrections are implemented to ensure the separation margins remain intact. In a powerful storm, atmospheric density varies rapidly and changes in drag are dangerous to orbit prediction and widen uncertainty. When command links, navigation or ground processing are hampered simultaneously, that maneuver cadence becomes difficult to maintain at a time when it is most required. The estimate of one study, the CRASH Clock, implied that an entirely missing maneuver capability would cause a disastrous impact of a collision within 2.8 days, and another analysis gave a figure of 5.5 days in 2025. Anyway, the speed of propagation is indicated in days not months.
2. Orbit prediction errors driven by atmospheric “puffing”
Although the satellites are healthy, heating of the upper atmosphere in a storm alters the orbital paths and increases the drag. The operational effect is the precipitous loss of accuracy of where everything is making operators maneuver more frequently and accept greater safety margins reducing operational capabilities in an already congested orbital neighbourhood. The workload saturation is the knock-on effect: increased conjunction alerts, increased communication between operators, increased spending on station-keeping and increased difficulty in sequence the maneuvers without generating new conjunctions. It is at this point a storm ceases to be a space-physics occurrence and is an air-traffic-control-like scaling crisis, except that the vehicles are moving at orbital velocity and thousands of them have comparable shells.
3. GPS/GNSS accuracy collapse from ionospheric disturbance

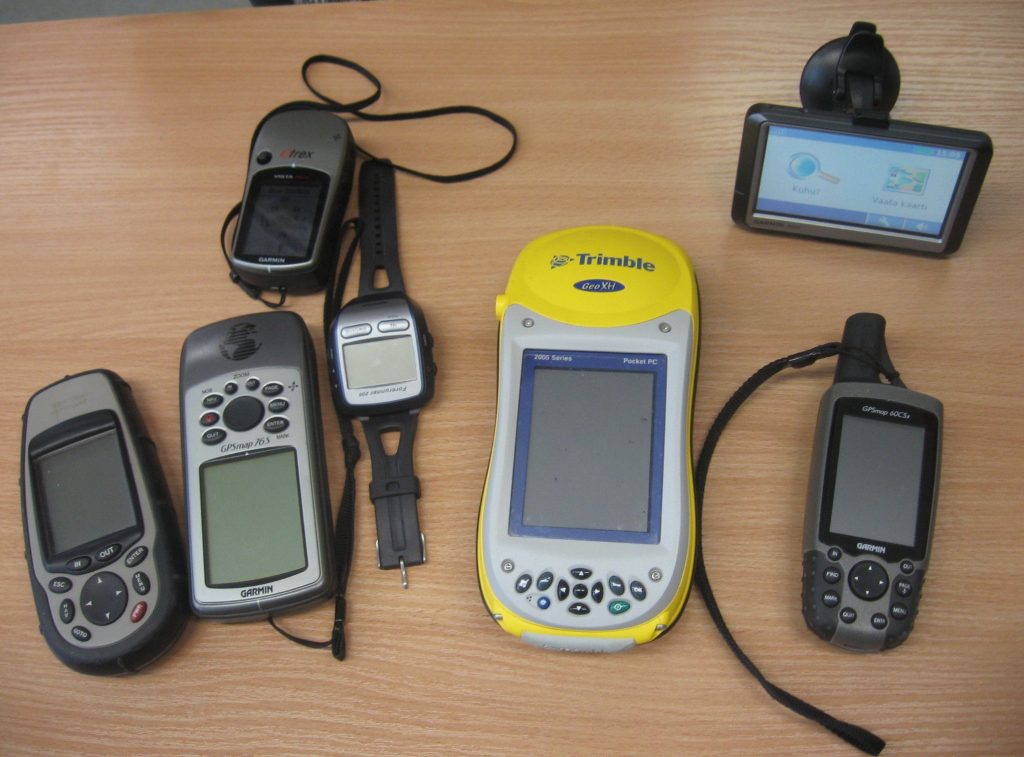

Elaborate satellite navigation is another significant early symptom on the ground. Illustration GPS signals have to travel through the ionosphere, where the charged plasma deflects the path of radio waves, and during a geomagnetic storm, the electron content of the ionosphere varies so fast that compensation models based on quiet models can no longer apply. NOAA provides that in serene conditions one-frequency receivers will provide a margin of less than a meter of accuracy, but, in a ruthless storm, the margin will soar up to tens of meters or more when corrections received by the receiver become invalid. Dual frequency systems have the capability of eliminating much of the ionospheric bias by comparing two signals, although it is still possible to lose lock on a receiver when serious disturbances occur. This is why the problem of navigation failures is not limited to personal instruments: high-precision receivers are also present in surveying, construction, timing, and automated machine guidance-systems, where the assumption of continuous operation is made, not occasional failure.
4. Aviation navigation and surveillance degradation

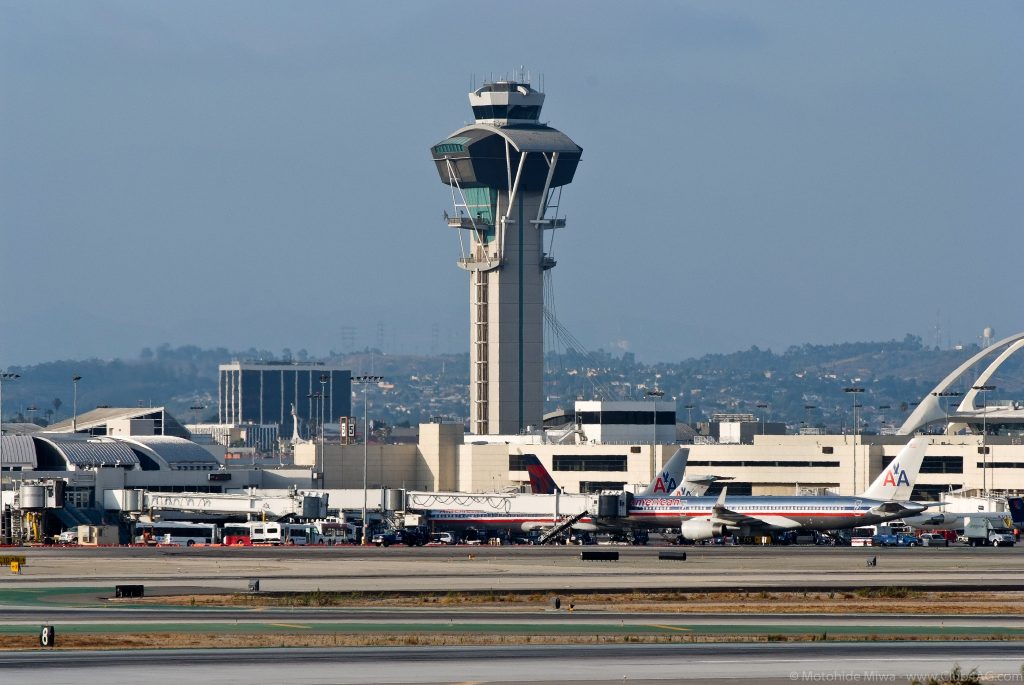

One of the quickest locations where deteriorated GNSS is operationally noticeable is in aviation. The FAA explains the potential interference of GNSS-based navigation and surveillance systems by the ionospheric disturbances in particular where air transportation and procedures rely on the use of satellite-based approaches. The National Airspace System has over 2500 airports where space-weather activities may impact GPS/GNSS-based landings, and although most locations are now equipped with instrument landing systems to support such landings, any disturbance may still spill over into delays, reroutes and lower throughput in cases where conditions are not readily conducive to fallback. This is not a one-point outage; it is a capacity squeeze. Precision navigation becoming unreliable causes the system to move towards more conservative separation and procedures and small degradations become network wide disruption since schedules and airspace management are closely interconnected.
5. Radio blackouts and polar-route communications loss
Radiation storms and solar flares may impair or disrupt several radio bands simultaneously. The FAA reports that the polar flights may experience High Frequency (HF) communications being rendered ineffective by solar radiation storms and that, the VHF, HF, potential UHF and L-band communications may be impacted by the bursts of solar radio at any latitude. The dayside radio blackouts on earth can also be caused by the X-rays emitted by the solar flares. The pace of propagation in this case is instantaneous: a radio path that is operational now may cease to be operational in the duration of operation. There are mitigations including frequency shifts and reroutes, which place procedural load and limit route planning as another channel through which a space-weather disturbance makes its way into system-wide capacity reduction.
6. Power-grid voltage instability and transformer stress

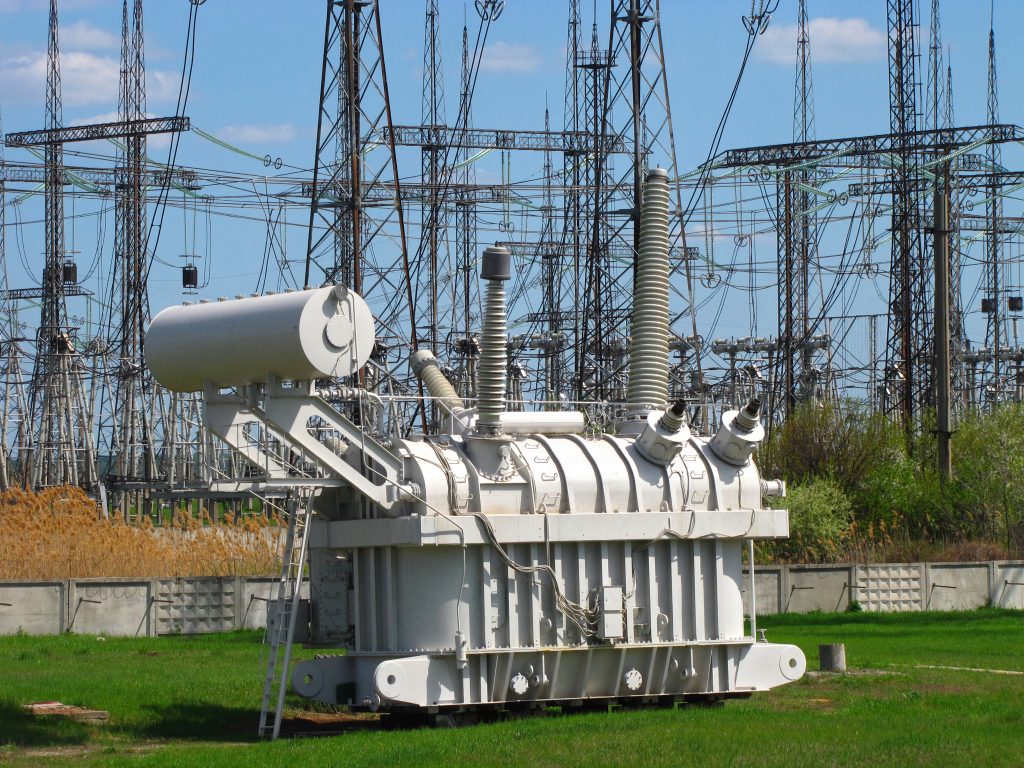

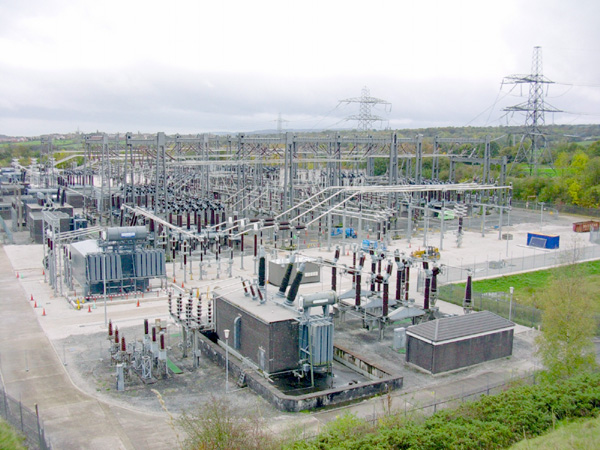

The breakdown of electric grids is more like a physiological than a mechanical phenomenon: small perturbations may be tolerated until a critical point is reached, after which the system rapidly becomes nonlinear. Geomagnetically induced currents (GICs) In peer-reviewed literature GIC-induced transformer core saturation has been reported to raise the reactive power need and inject harmonics capable of operation by protection systems. The outcome may be drops in voltage which automatic tap changers are unable to rectify, malfunction of protection relays and in worst cases collapsing voltages.
The speed is indicated by historical experience. The geomagnetic disturbance of 1989 saw a voltage failure at Hydro-Québec and a very large scale loss of power which made the grid changeable within an operating night, demonstrating that grid effects can change within an operating night itself. Having started to disclose components in protective trips, the spread turns electrical: there are fewer transmission paths, and less voltage support remains to serve the same loads, causing stress elsewhere.
7. Forecasting as the only scalable “speed bump”

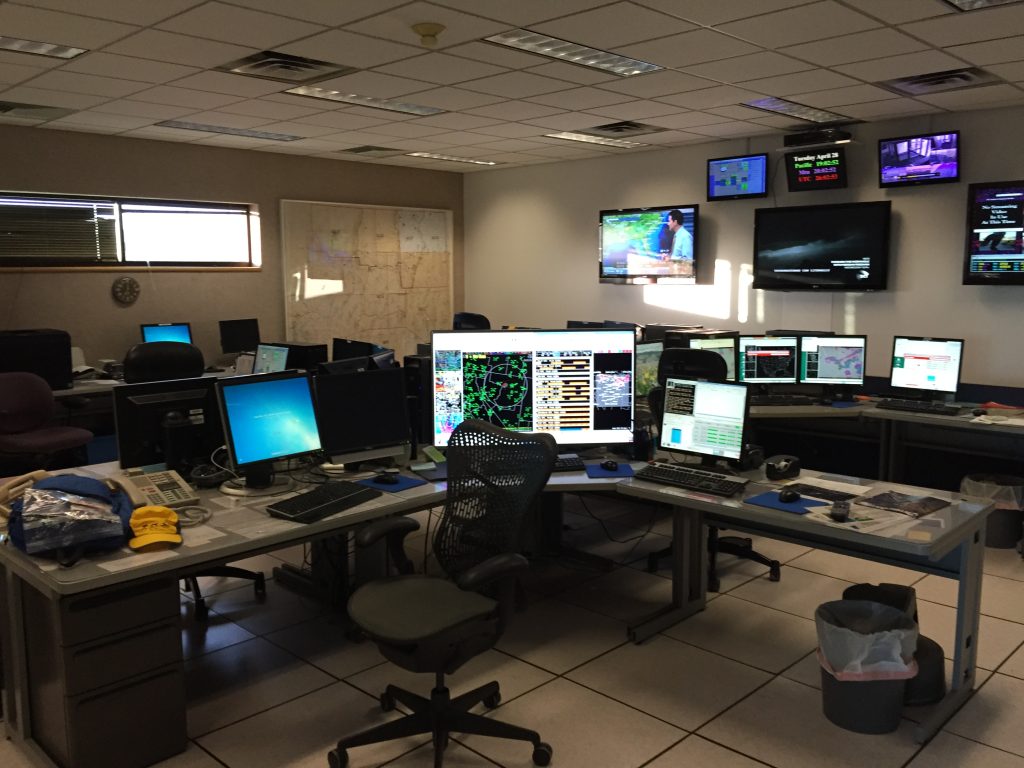

In the case of most infrastructure, the pragmatic lever is not the cessation of the storm but the purchase of time and confidence in order to carry out mitigations. The method used by NOAA focuses on constant monitoring and rapid delivery of observations; missions like SWFO-L1 will reduce downlink and processing pipeline durations to allow information to reach earth sooner when time is of the essence. The same guidance provided by NOAA mentions mitigation measures based on warning time, such as putting satellites into safe mode and disconnection of selected elements in a power-grid to minimize damage due to geomagnetically induced currents.”
Forecasting does not eliminate failure modes, but it changes the spread rate. Earlier, higher-confidence warnings allow operators to reduce grid loading, reconfigure networks, and prioritize spacecraft safety, converting an uncontrolled cascade into a managed degradation. A mega-solar storm spreads fastest where modern systems rely on continuous precision: maneuver planning in orbit, radio propagation through a disturbed ionosphere, and power networks operating near tight stability margins. The common theme is coupling. The more a system depends on real-time coordination between satellites, aircraft, grid components, or forecasting pipelines the less time it takes for one disturbance to propagate into many.
