Iconic 9mm pistols can hardly turn into legends due to one headline appearance. In more cases, they are given that designation by making minor, technical decisions that redefine reliability, capacity, handling and manufacturing, sometimes decades before the shooters realize what has been done.
Throughout the 20 th century and into the polymer era, some designs quietly began to move a little: magazines which held more without turning the grip into a brick, frames which took the elements and safeties which operated without bending the manual of arms.
Such breakthroughs in engineering were not always instantly welcome. They succeeded in, however, laying the groundwork upon which subsequent pistols would standardize- and that is where icon status usually comes in.
1. It was called the Staggered-Column Magazine That Made High Capacity Practical
Among the most significant changes in the design of 9mm pistol was the transition to true staggered-column feeding on the basis of not having a grip that is unmanageable. The Browning Hi-Power is deeply connected with this change, as it capitalized on an idea of the magazine that would expand the capacity without increasing the proportions of the pistol, which could be serviced easily. Practically that translated to 13 rounds in a package, which did not need oversized hands or exotic holsters, aiding to reinvent what a duty pistol could hold.
The innovation was behind the label, the marketing of the time, the magazine geometry itself: solid stacking, predictable presentation, and a grip profile that soldiers and police could literally live with. That design concept was contagious and was later to be expected rather than a surprise.
2. A Unlocking System Which was Linkless and therefore simplified the Recoil Cycle
The short-recoil, locked-breech system of the Hi-Power employed a cam system at the expense of the swinging link called upon earlier Browning pistols. The pistol attained a controlled unlock by controlling the movement of the barrel using a hardened bar and a corresponding cam slot which assisted in durability, repeatability and also reduced the parts interactions compared to link-driven systems.
Such type of a linkless tilting-barrel logic was a prototype of subsequent locked-breech 9mm pistol, not due to being flashy, but due to the fact it could be manufactured, serviced, and subjected to the real life torture.

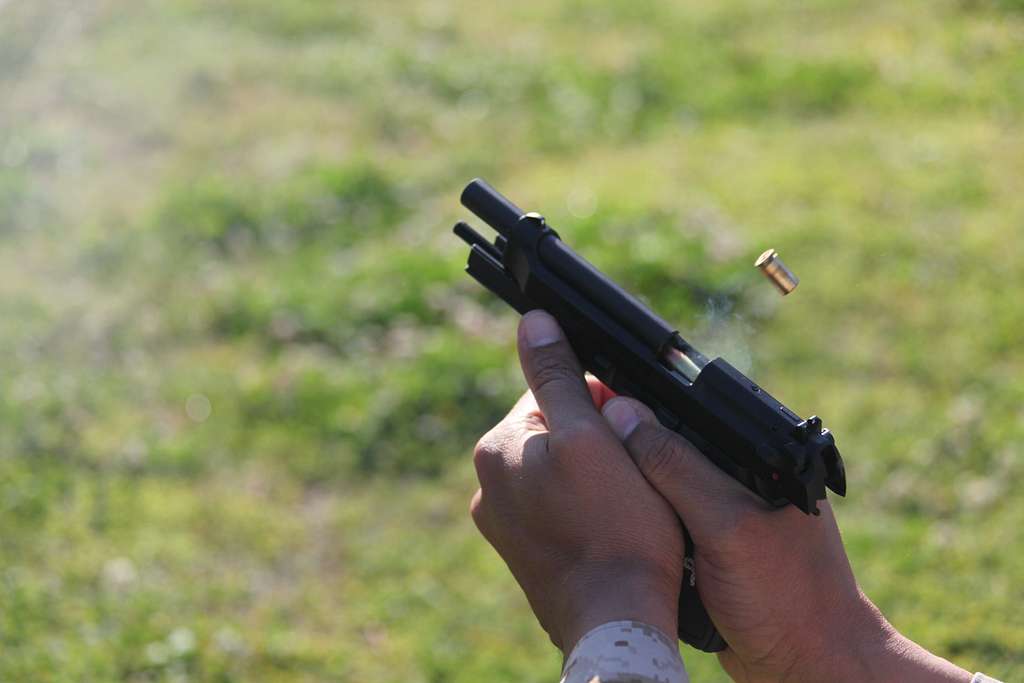

3. The External Extractor That Increased Baseline Reliability Silently
Reliability is often considered by shooters based on the fact that it does not occur: failure to extract, stovepipes, or unpredictable ejection. The long life of the Hi-Power saw an internal modification in 1962 as the Hi-Power changed its internal extractor to an external extractor, a change that was done to specifically enhance the functionality in the varied conditions.
The point was not cosmetic. External extractors usually provide simpler examination, more predictable springing, and a direct course to hearty extraction-data that is appreciated following thousands of rounds than on a display counter.
4. A Polymer Frame Before Polymer was Cool

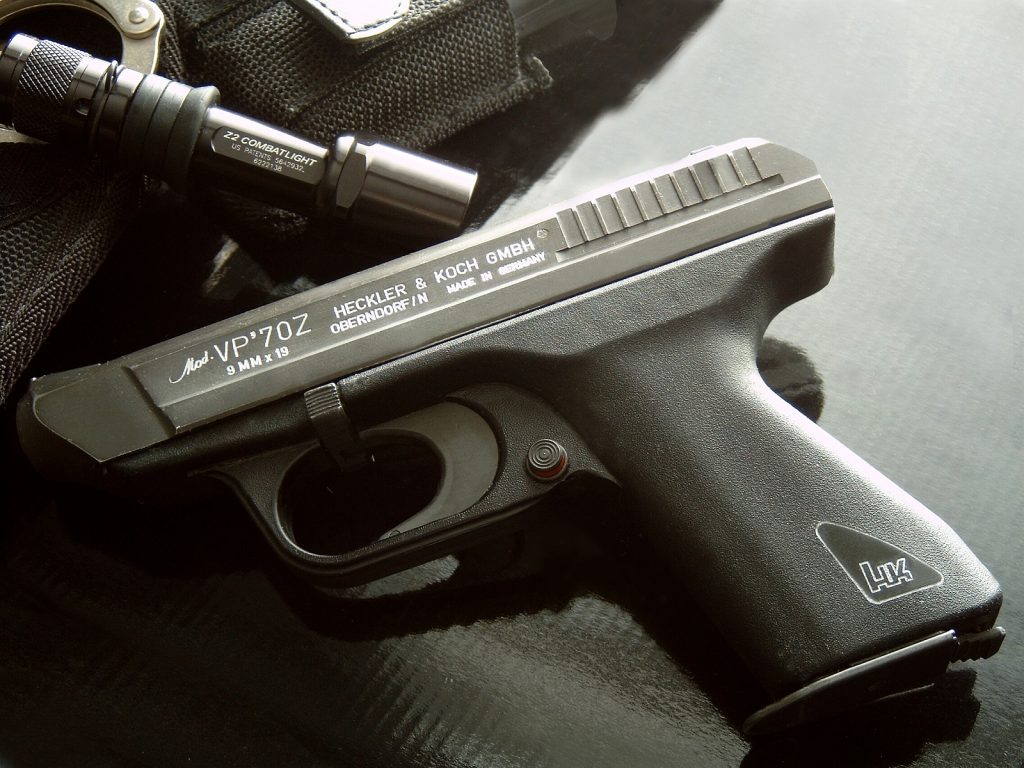

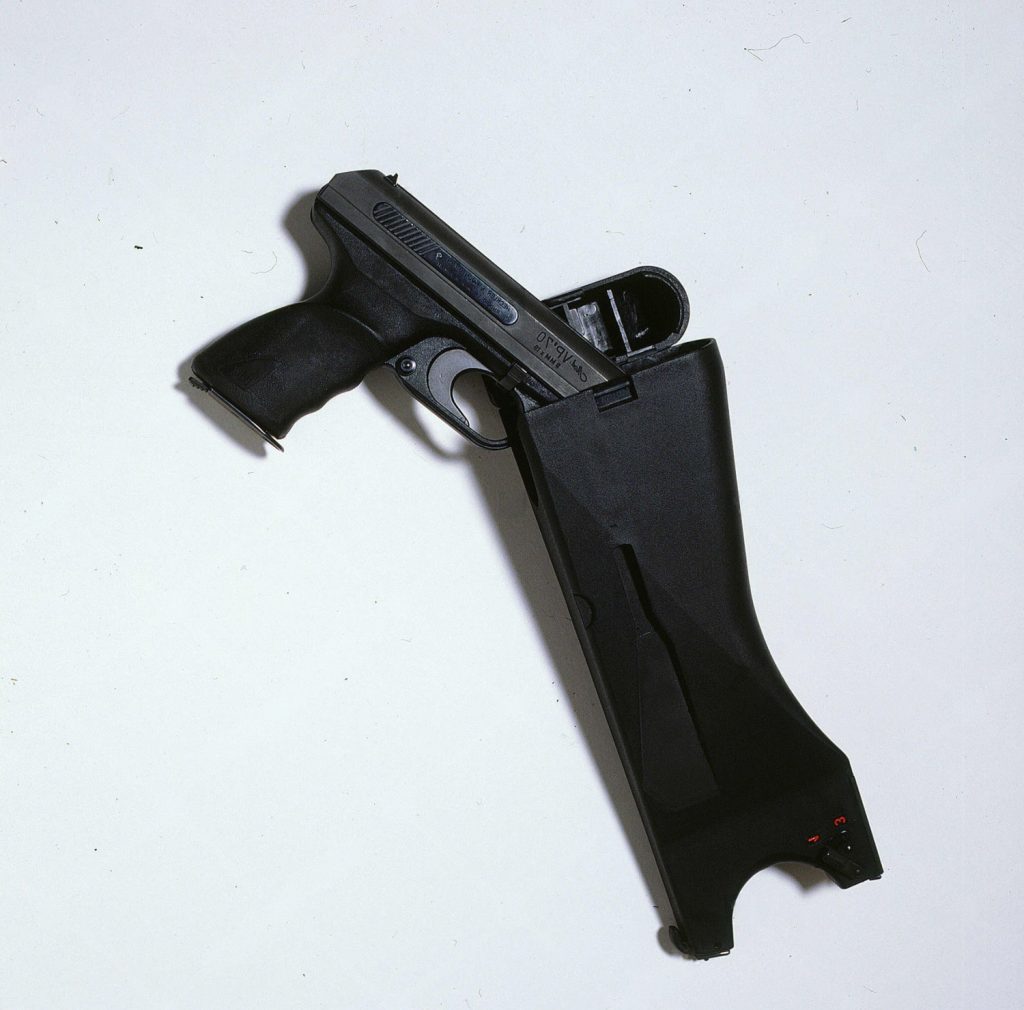

Polymer frames are now standard, although the pioneer production service pistol to follow the same path was the H&K VP70. The VP70 demonstrated that a handgun frame can be molded in large quantities, which can retain its useful handling characteristics, long before the market had any confidence in plastic. Another important advantage was also signaled by the unloaded weight of the VP70 820 g: it was much lower than that of comparable all metal models of the time.
Although the commercial narrative of the VP70 was quite complex, its frame material selection predicted the modern service pistol future.
5. A Double-Feed Pistol Magazine Made to Feed Aggressively
Capacity is not sufficient, but feeding geometry defines whether that capacity is utilized or not. The VP70 made the unusual, deep-shock, two-feed design of its 18-round magazine unusual this device occasionally found in submachine guns, but never in a pistol. The decision was in favor of strong cartridge presentation and made the VP70 a platform that was constructed on the idea of feeding reliability and not merely extending an existing model.
The 18-round minimum capacity of the VP70 was a proclamation in a period where service handguns simply had a lesser capacity (when often coupled with a reduced standard round capacity) on what the feed system could support, given that the feed system was engineered to support it.

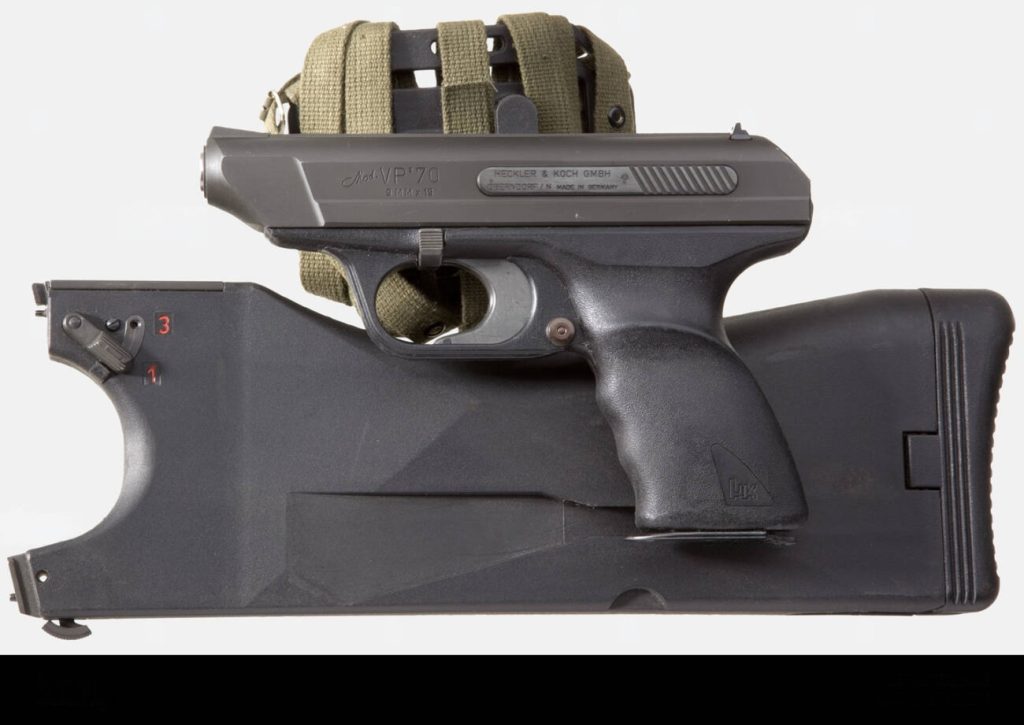

6. A Striker System Where Safety was Mechanical, Not a Lever
Pistols which are fired by the striker are available in numerous flavors and the VP70 was unique in its approach: the striker was fully in the forward position at rest, which was an extremely conservative mechanical safety position. It too came with tradeoffs such as a very hefty trigger pull, but the engineering implication behind it was quite evident, that striker fired did not have to be precariously pre-tensioned.
It had a premature investigation of how internal geometry and springing could provide safety properties without any external switches.
7. Gas Management Using Rifling Depth to retain Blowback Viability
There is a physics issue with Blowback 9mm pistols: the slide has to be held open long enough without unreasonably increasing the weight of the gun. Part of that challenge was dealt with by the VP70, which had extremely deep cut rifling with the purpose of directing gas behind the bullet to relieve pressure on the slide and to enable the direct blowback operation. It had a small decrease in bullet velocity compared to equivalent barrel lengths but the engineering purpose was to weight the slide, timing and controllability of a cut-down operating system.
It was no marketing stunt it was a mechanical band-aid to keep a simple action running in a hard-working caliber.
8. Interior, Passive Safeties That Standardized Ready Without a Switch
The polymer contribution was not the most significant to the Glock platform, but the normalization of passive internal safeties, which occurred automatically. The Safe Action system of Glock employs three unrelated mechanisms, where the trigger safety, firing pin safety, and drop safety are utilized to avoid discharge when there is no manual on off lever. The outcome was a steady press of the trigger and a more simplified manual of arms which suited institutional training and high temperature carry.
The combination of that engineering package, corrosion resistant surface treatment and a high capacity-to-weight-ratio served to pre-establish what would be meant by modern in a duty 9mm.
The development of iconic 9mm pistols is viewed through a close-up perspective as being less about one revolutionary moment than a series of pragmatic engineering decisions. Capacity, extraction, lockup geometry, materials, and safety systems had pushed the baseline a bit higher.
The pistols were no longer merely successful designs but they served as reference points of everything that came after them when those decisions worked in a manner that shooters could keep on relying on day after day.
