The reason is that the vast majority of contemporary firearms operate extremely well, given the fact that they are small machines that repeat in terms of powering extreme pressure with parts cycling at high rate of speed. When you see the stoppages you find the shooters being correct in the first place, and usually they are.
There are baked into the hardware some it ran fine last range trip problems. Design decisions that may appear insignificant on a CAD display can cause feed problems, unpredictable extraction, or trigger points that appear harmless on a slower cadence may cause problems when the cadence is faster than expected.

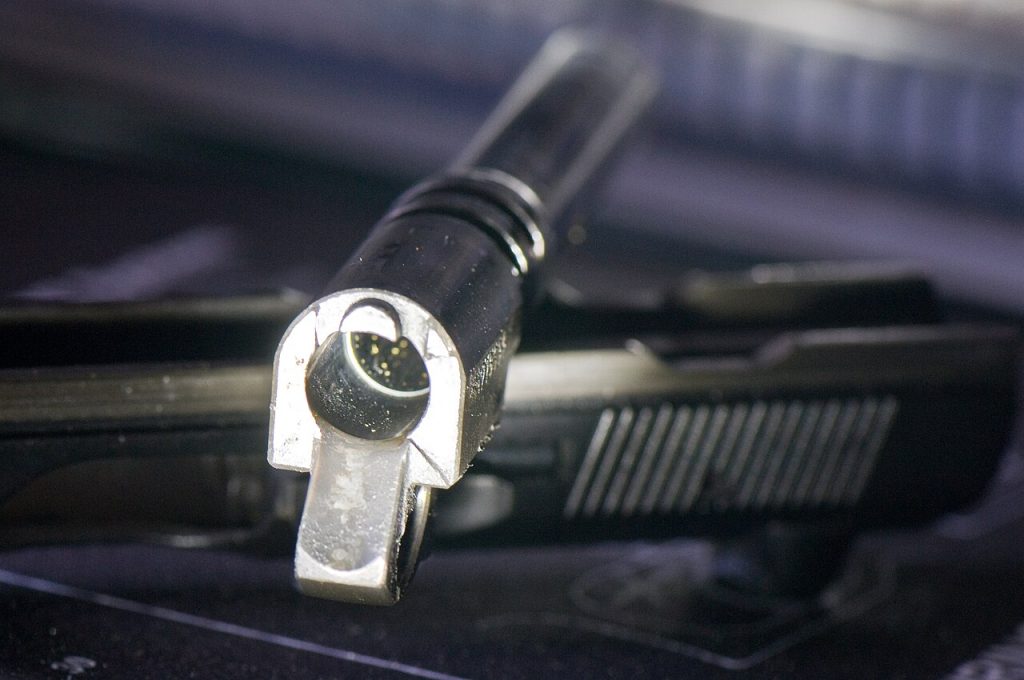

1. Feed geometry that’s too sensitive to dirt and bullet shape
A semiauto should have a magnanimous route between magazine and chamber. A small amount of carbon, dry fouling, or a blunt profile on the projectile, a small cut of the feed ramp angle, chamber mouth, and barrel throat, can become a failure to feed. Hard, traditional geometry is also a penalty to slightly non-specialized cartridges and flimsy magazine presentation. The outcome is a stall which appears to be ammo related, but is actually not tolerant of real-life variability.

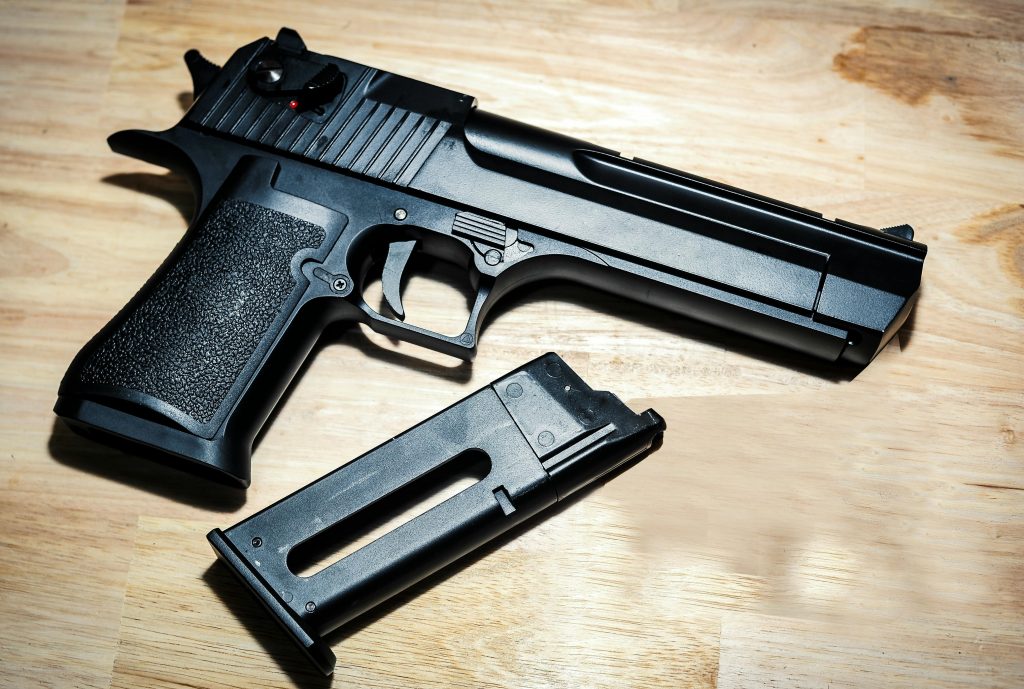

2. Magazine wells and mag catch interfaces that allow tilt or inconsistent seating
Stoppages related to magazines usually begin with the manner in which the gun finds the magazine and holds on to it. When the mag catch shelf is small, the well too big, or the support of the front-to-rear is not even, the magazine may be slightly angled sideways between shots. That little movement varies feed angle and may cause intermittent nose-dives, bolt-over-base errors or that mysterious feed problem that no longer occurs with a different magazine body. Designs based on the tight fitting of magazines to the well feature with no effective alignment properties are highly sensitive to the wear of parts.

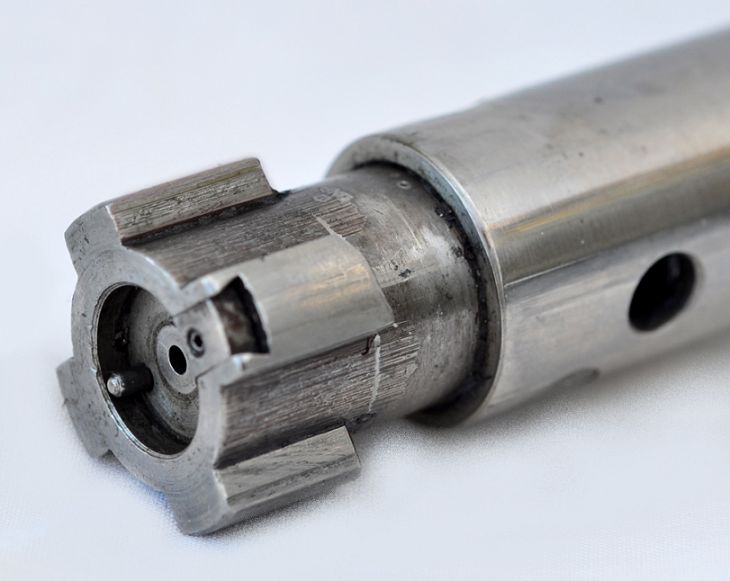

3. Extractor systems with inadequate tension range or poor claw engagement
Extraction does not occur by chance, but is the beginning of a whole cycling process. Extractor designs which under-spring the extractor, extractor claws with restricted bite or excessive extractor roll may slide off the rim during heat and foulage. That can cause a classical failure to remove that propagates into the double-feed as the following round of the loading process attempts to occupy a chamber already occupied. The tension window/geometry of the extractor is often the culprit when a gun runs clean but chokes dirty.

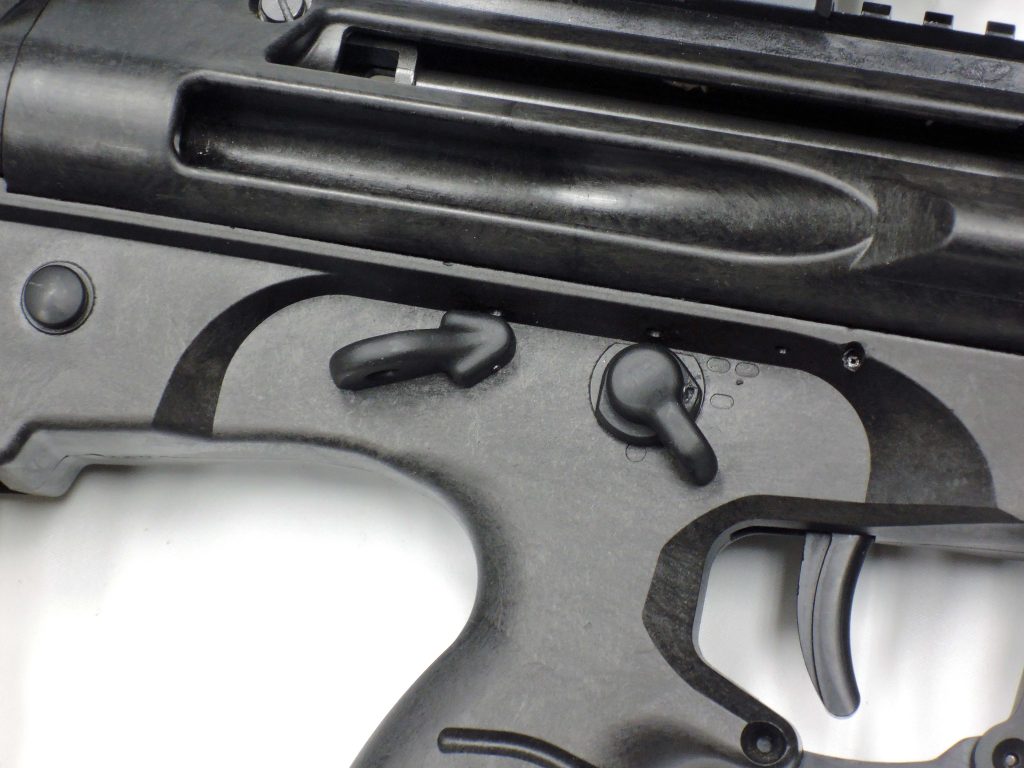

4. Ejection timing and port sizing that don’t clear the case consistently
Ejection is time-dependent: the extractor control, the position of the ejector strike, the slide/bolt velocity, and the distance that the case must move out of the gun. When the ejection-port is narrow, the ejector is short, or the speed of the cycles of the system is broadly different on the various loads, cases tend to bounce, to move in random directions, and not to clear. That is why a stovepipe will appear despite having good ammo. Designs that do not have any specific extractor/ejector relationship that reliably manage the case will more likely give more erratic ejection patterns with increased fouling.

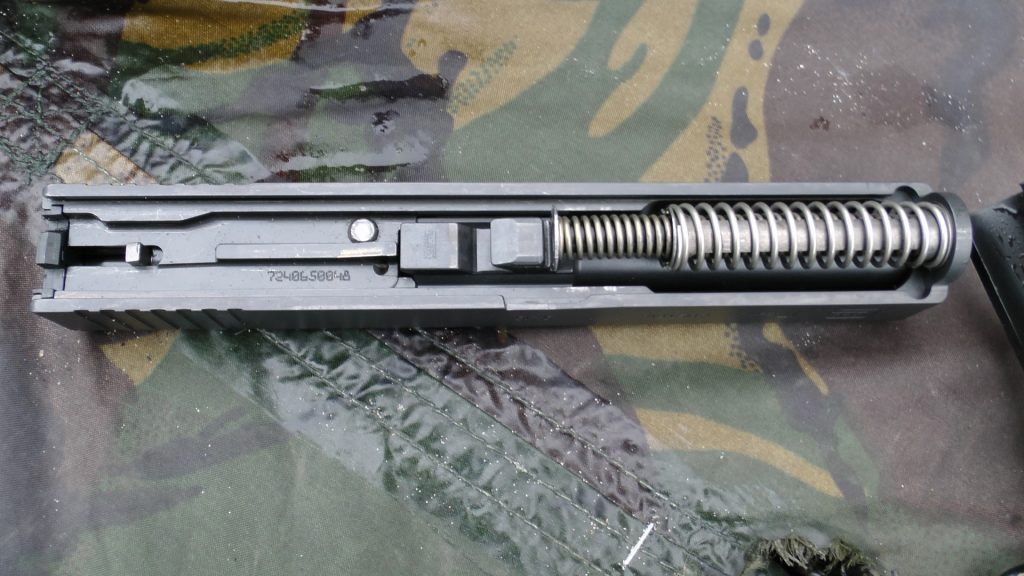

5. Spring rates tuned for a narrow ammo window
Timing budget of the entire firearm is determined by recoil springs, magazine springs, striker/hammer springs and buffer systems. A platform that is tuned to have a low power factor will be unreliable with slightly weaker, slightly hotter, or just inconsistent ammunition. Excess recoil spring may also short-stroke and create problems with feeding, and insufficient recoil spring may smash the system together to the point of running away with the magazine presentation (or premature wear). A runs great configuration may over time transform into a runs sometimes configuration with the springs settling and tolerances accumulating.
6. Firing pin and striker channel designs that invite drag and light strikes
Maintenance Light primer strikes can be commonly talked about as problematic, but can also be predisposed by design. Firing pin/striker velocity can be slowed by narrow striker channel with sharp transitions, rough finishes on the striker body or geometry that entraps debris. With a heavy spring stack, or with a marginal firing pin protrusion coupled along with the system, the gun may exhibit light primer strike symptoms, which appear periodically, usually after a lengthy range session when fouling and alterations in viscosity are of most importance.
7. Trigger reset characteristics that encourage “short-stroking” under speed
The sharp reset sensation can also be a training trap where the reset that the mechanism is operating in is tight and the shooter is trained to release when the mechanism clicks. Depending on pressure and grip tension, the finger may not push the lever forward as far as possible resulting in a dead trigger that appears to be malfunctioning when the gun is actually not being reset. This is known as trigger freeze and is referred to as not resetting the trigger despite me thinking that I had in a trigger reset training discussion. The designs that give an indistinct reset, or must travel a long way in the forward direction to re-engage, tend to reveal it more in the fast strings.

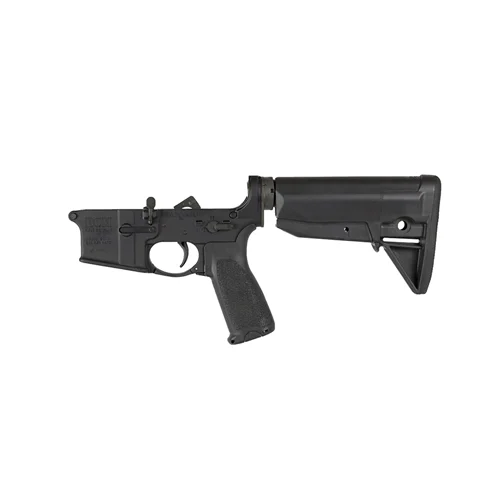

8. Material choices that flex in high-stress interfaces
The problem of material choice is functional in case the receiver or critical mounting regions have a flexing response to the load. Other types of polymer receiver designs may focus tension on the threads of the buffer tube and magwell, in which alignment and rigidity may be important in feeding and cycling. The common concern areas when reinforcement is not adequate identified in industry discourses of AR receiver materials include threaded buffer tube extensions and magazine wells. Any minor deformation may cause a change in mag position, which can change the feel of cycling or speed up wear, or wear itself out in a way that is only noticeable at range.
There is no single cause of range failure, however design determines the limits within which a firearm can survive. The further away a platform is based on flawless magazines, immaculate cleanliness, or a trim ammunition band, the greater the chances of it being considered reliable until the moment it is not. To shooters and builders alike the real-life lesson is straightforward: on the road to troubleshooting, it is prudent to look beyond the pop-up symptoms and query what component of the design is functioning without margin- since it is there that a small fault will develop into a regular hangar-up of the machine.
