When small drones are capable of hovering, dashing, and harmonizing with the clutter of the ground, what does something called short-range air defense have to look like when an infantry squadron is not capable of carrying a radar truck with it?
The next generation short-range interceptor (NGSRI) project of the U.S. Army has been influenced by a threat mix of low altitude which is in the range between electronic countermeasures and heavier vehicle based defenses. The capability to scale protection among dismounted groups and formations during maneuver is the center of gravity of the program; however, it remains compatible with the current launch infrastructure.
1. The seeker and guidance problem is driven by Drone tracking
NGSRI is being constructed over the real-world problem of dealing with small unmanned aircraft which may be slow, able to hover, and unpredictable at low altitude. That point of attack penalizes pursuers that cannot maintain low signatures and clutter, and compels leadership and management to remain reactive late in the air. In its message, Raytheon has reiterated several times how the interceptor can be used to track targets of drones, thus making discrimination and endgame maneuver control as the core of the design and not a side mission.
2. One missile will be called upon to act on the shoulder and on vehicles
It is a characteristic need of the Stinger replacement; that it must be dual-employed: a man-portable system in small quantities, and a vehicle system in mobile formations. The requirements of the program have involved that the new missile will not be heavier than Stinger thus it can be launched by the already existing launchers of the vehicles and held by the single operator. The operational importance of that constraint is that it allows reduction in the count of interceptors needed in the field, both to deliver dismounted and mounted defense; and to prevent the bifurcation of logistics and training that would have happened between formations were separate sets of interceptors to be deployed.
3. Highly loaded Grain motors are a direct bid to greater reach
Propulsion has become one of the most apparent technical distinguishing factors. Raytheon and Northrop Grumman carried out numerous tests of Highly Loaded Grain (HLG) solid rocket motors, which were said to have a longer burn time and a greater power output than traditional ones. At short range, the additional energy is not an abstract concept: it influences reaction time, cross-target range, and the capability to maintain manoeuvre during the terminal stage, in which small UAVs can still provoke a strike.
4. The range and speed milestones are being dragged far beyond the historical standards

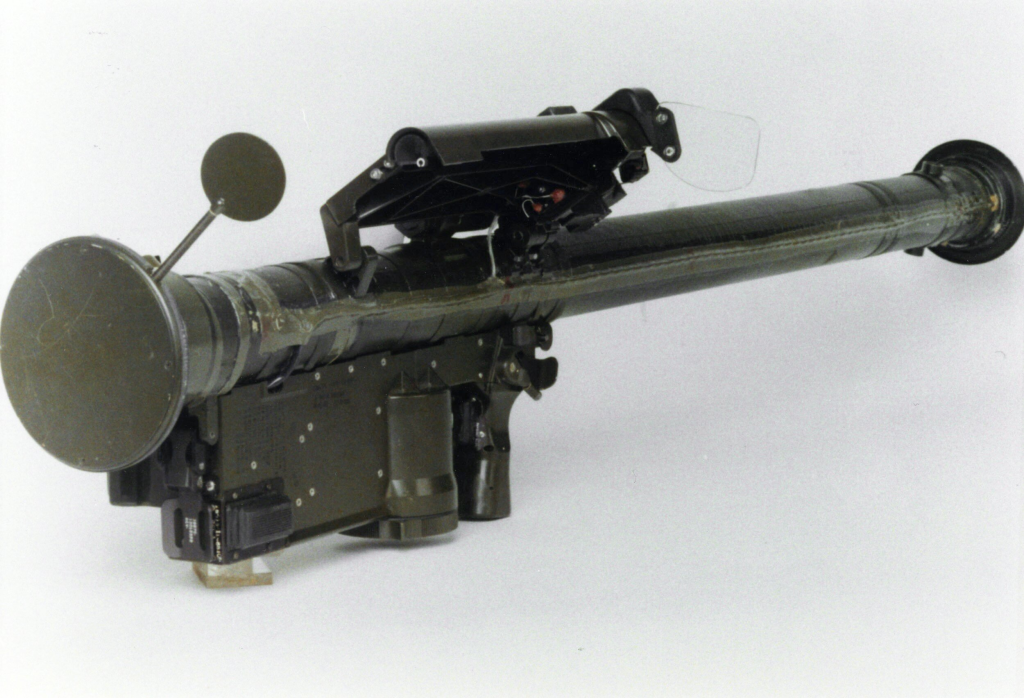

Stinger is still considered the standard of weight, portability, and combat use, and most of what is said about it puts it at Mach 2.2 and several kilometers of range (depending on model and origin). This concept of Raytheon has been linked to speeds faster than Mach 3 and hitting any target more than 9 km, almost twice the range of legacy forecasts in the competitive world of NGSRI. Such development results in positions in which gunners and vehicles can be placed, allowing the expansion of defended corridors with no increase in the size of a launcher footprint.
5. The buying time of stinger upgrades is purchased at the price of uncovering the ceiling
The Army has still been able to modify the existing inventory, such as retrofits that provide proximity fuzing to allow a warhead to detonate around a small aerial target. According to Raytheon Land Warfare Systems vice-president Sam Deneke, the Stinger upgrade provides the troops with an affordable yet efficient means to kill the increasing enemy UAS targets that are flying overhead on the battlefield. These developments enhance short-term counter-drone operation, but not structural limitations associated with older seekers, power/cooling systems, and narrow growth margins.
6. The flight test of Lockheed Martin is an indicator of a concurrent route to the same state
NGSRI is a competitive program and the Quadstar based approach by Lockheed Martin has now stepped into flight testing as part of a planned campaign to increase the envelope of the missile. The company has outlined the launcher and missile as a modular ready round that is portable to the soldier, as well as mounted on vehicles, and with a digital fire-control logic that was designed to streamline the engagement cycle. The design focus aligns with the greater direction of the Army to reduce the operator burden, enhance the discrimination and identification, and ensure compatibility of the interceptor with the available launchers ecosystems.
7. The weapon does not include an after-thought of manufacturing plan
Credibility of the program relies on the fielding of scale and NGSRI competitors have emphasized on modular design and automated or streamlined production to expedite production and stabilize the process. This is in line with an environment where there is stress on interceptor stockpiles and a short-range missile is likely to be broadly deployed instead of being rationed and used on niche applications. Iterative updates are also supported by open interfaces and modular subsystems, which is critical to a type of threat that evolves at a pace that is much quicker than the historical multi-decade missile lifecycle.
The feature shared by the two industry teams is a resurgence of distributed, close-in air defense able to maneuver with the force and remain able to still integrate into broader sensing and cueing networks. The engineering tradeoffs, which include the seeker discrimination, propulsion energy management and that of the launcher interoperability are being considered as one system problem and not as a series of upgrades.
When NGSRI becomes operational, the effect is reduced at the lowest tactical layer and fewer platform-specific exceptions and workarounds. The Stinger replacement project of the Army is finally an experiment of whether the portable air defense can become a scalable, manufacturable layer that can keep up with the lowest of threats in the sky.
