Can anybody tell a fighter jet by a line one-sixth inch long, no identification, no context? This question is in the modern age, in which shaping is a matter of sensors and survivability as well as it is of speed, a not unusually technical challenge.
Silhouettes still count since they show the priorities in engineering: wing sweep to recover carriers, canards to control high-alpha, canted tails to hide signatures, and intake geometry that silently tells that there are tradeoffs between range and cooling and radar. Doctrine is the apparent remnant of the outline.
1. EA-18G Growler
To an eye, the Growler can resemble a Super Hornet- since it is mostly- but the task behind its shape is completely different. It is an electronic attack aircraft of carrier class designed to support strike packages and destroy threat sensors via jamming, deception and electromagnetic manoeuvre.
The consequence of the Next Generation Jammer-Mid Band pod family AN/ALQ-249(V)1, the next generation pod family, is a hanging off upgrade of the jet and was developed as the future of the legacy systems. That change is important since the long history of operating the older ALQ-99 has been strained over decades and the reality of operating the aircraft in carrier cycles, salt air, and high sortie tempo is influencing the airplane just as much as its aerodynamic shape does.
2. F/A-18E/F Super Hornet

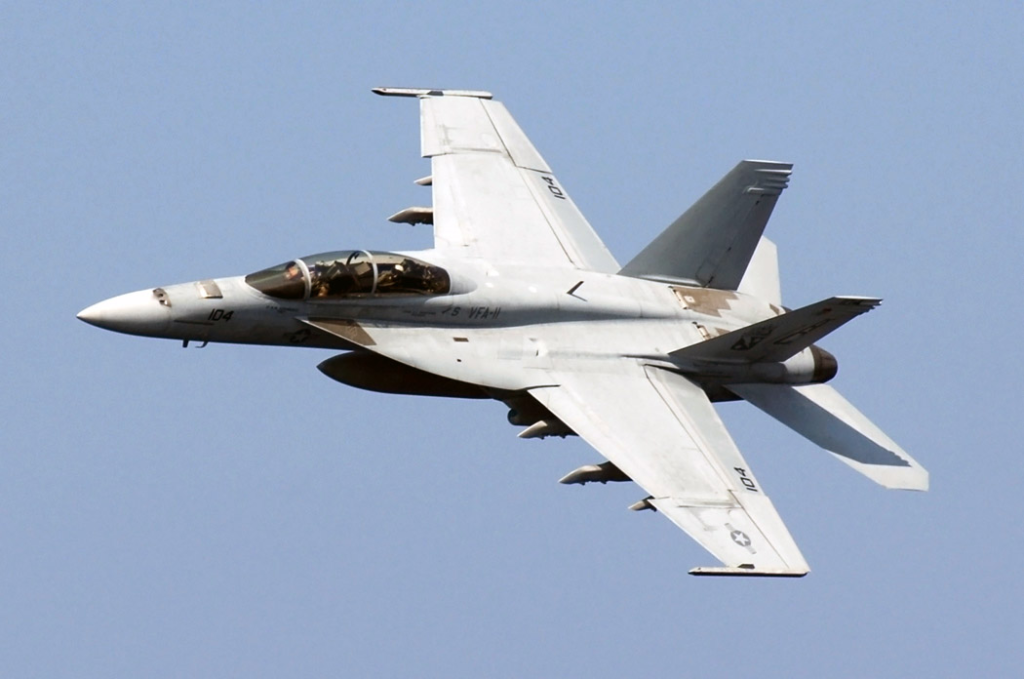

The profile of the Super Hornet has a maritime airplane feel: twin tails in control control, robust landing gear geometry and planform decisions that compromise approach velocity with supersonic acceleration. The workhorse status of the aircraft is gained due to the breadth of the missions such as air to air, strike, reconnaissance, and even tanking missions and not due to any one distinctive characteristic.
The language of design of the Navy is already moving away in the background to its replacement, and the Next Generation Air Dominance family of systems with the F/A-XX of the centre of the family is the system of the concept. The future framing makes the silhouette of the Super Hornet appear to be a bridge: modernised to operate in the deck, but oriented toward an air wing which is becoming more teamed with uncrewed aircraft.
3. F-35 Lightning II

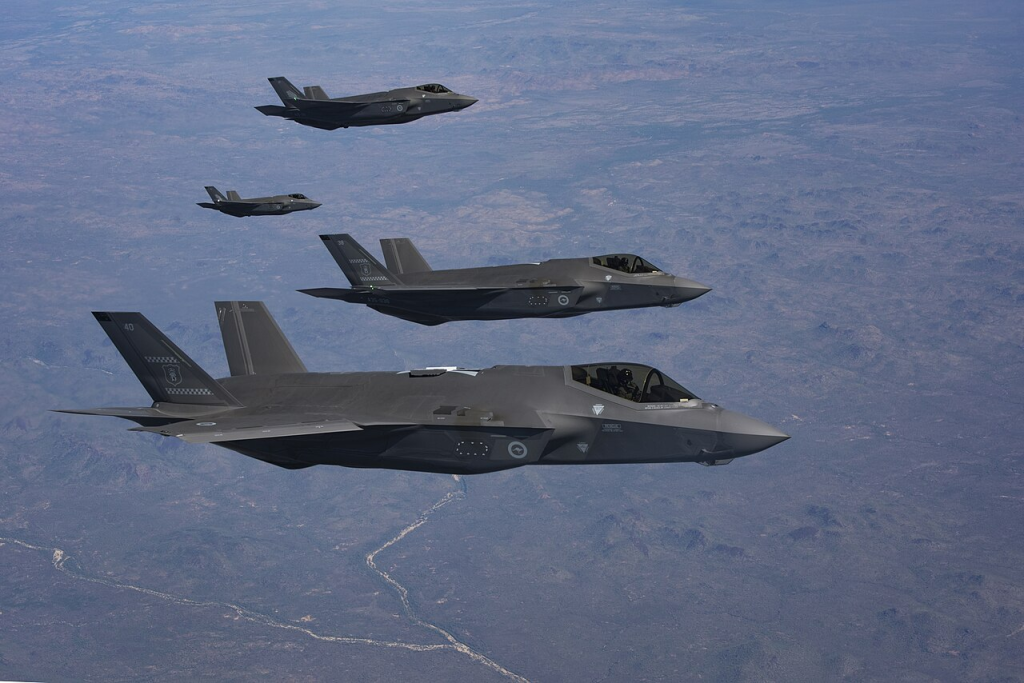

The F-35 is a paper airplane of concessions: the alignment of the edges, a smooth fuselage profile, and the volume on the inside used to house sensors, cooling, and to carry weapons that secure low observability. Even its actual physical form is digital in nature it is constructed on sensor fusion and network security instead of the one-ship strategies that the older silhouettes suggested.
The aircraft can be described as having several hallmark subsystems that characterize its status as a flying node such as the AN/APG-81 AESA radar and AN/AAQ-37 Distributed Aperture System that forms the basis of its 360-degree awareness. Another twist is the short takeoff/vertical landing F-35B variant adds: it offers stealth with a flexible base, which can readily switch ships and austere locations which can produce fifth-generation sorties.
4. Chengdu J-20 “Mighty Dragon”

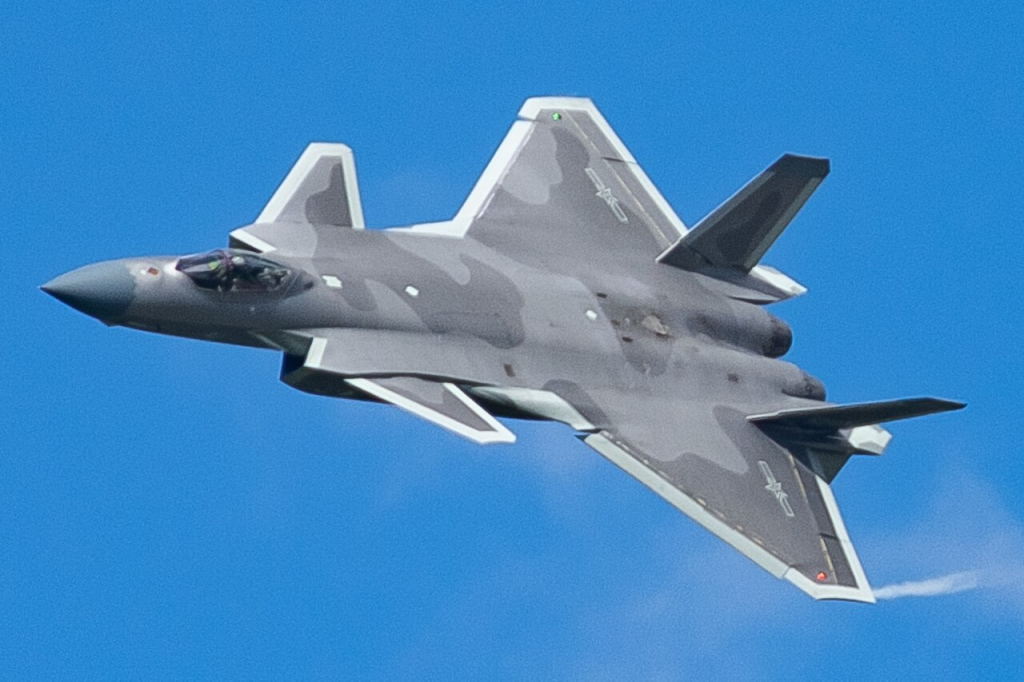

J-20 is silhouetted with one of the most distinctive among the modern stealth fighters: canards, long forward fuselage, planform that is indicative of a focus on the reach and carry volume. Its shape proposes another range of engineering priorities than Western twin-tail stealth fighters, despite working towards the same signature-management objectives.
The interesting aspect of this beyond a spotting exercise is what this shape implicates concerning internal bay sizing, fraction of fuel, and area available to develop sensors and processors. The fact that the aircraft is a national icon puts a strain on the need to be seen but the fundamental narrative is technical in nature: a fifth-generation aircraft designed domestically on the basis of long-range operational principles.
5. Saab JAS 39 Gripen

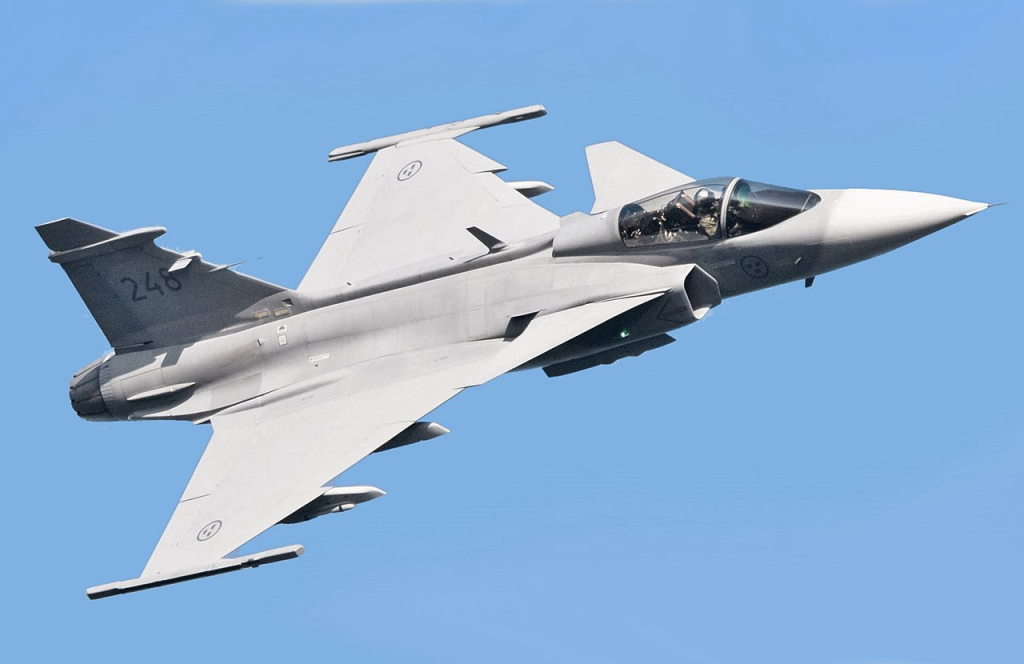

The Gripen is single engine and dispersed operationally oriented and capable of quick turnarounds and is compact, fitting smaller basing footprints. Its shape can be seen as a philosophy of agility and maintainability: a fighter which can be upgraded on the fly with modular avionics instead of being reassembled.
The said design also affects the way viewers perceive the shape of it. The shapes of the aircraft, smaller fuselage volume, sharp wing planform, and canard-delta geometry, foreshadow an orientation towards efficient performance and operating speed. In a mass and sustainment-built world, the shape of the Gripen is directly linked with the conception of its utilization.
6. Dassault Rafale

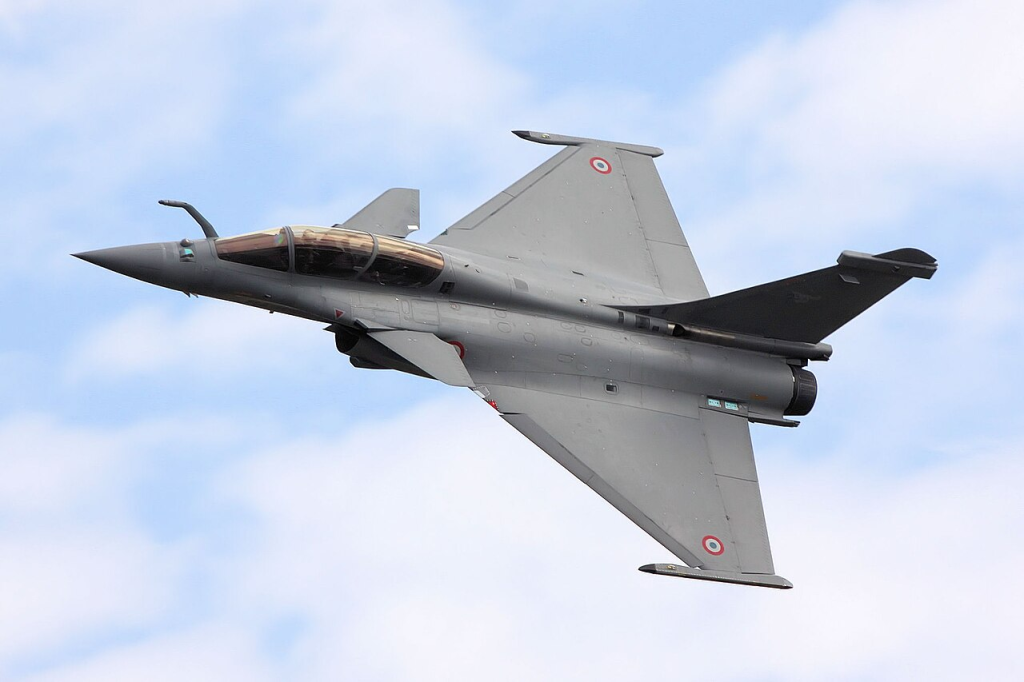

The canard-delta outline of the Rafale may be confused with other European designs in the distance, but this profile is closely tied to an ideology of self-sufficiency in attack: air to air, strike, and carrier operations within a single airplane line. The most important fact is that the reinforced compositions of the naval Rafale M and tailhook demands are subtle motivators of proportions and position.
The Rafale has a sensor and electronic-warfare stack under its skin, which forms the aspect of its identity, with the SPECTRA electronic warfare suite and the RBE2 AESA radar. Those systems assist in understanding the reason why the shape of the aircraft is focused on the stable high-alpha handling, flexibility of carriages, and integration of space onboard survivability equipment.
7. F-14 Tomcat

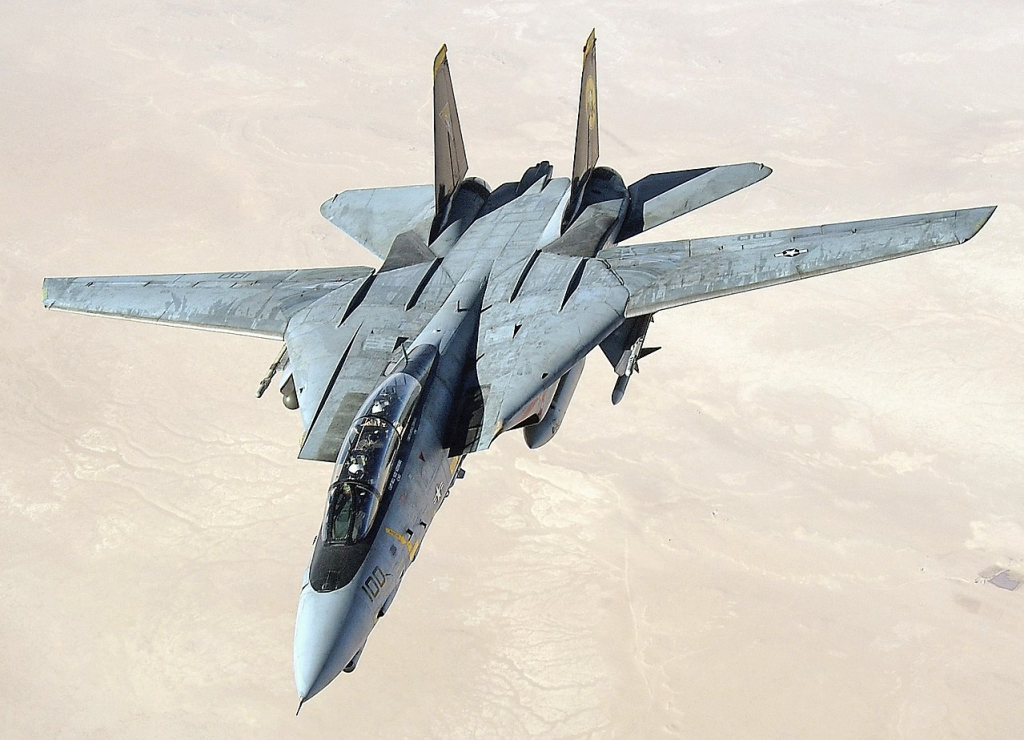

The Tomcat is still among the least difficult outlines to distinguish as variable-sweep wings are impossible to mistake physically. It was not that geometry, and it was a mechanical compromise between conflicting requirements: an intercept performance of high speed and a carrier approach that was controllable.
Its wide separation, twin tails and extensive lifting body are indicative of fleet-defense thought, when interception over a greater distance and massive carriage of missiles were the most sought-after features of naval design. The silhouette continues to exist even after the retirement as it symbolizes an age where kinematic performance and mechanical ingenuity were pushed to the limit to accommodate carrier requirements.
8. F-15 Eagle II (F-15EX)

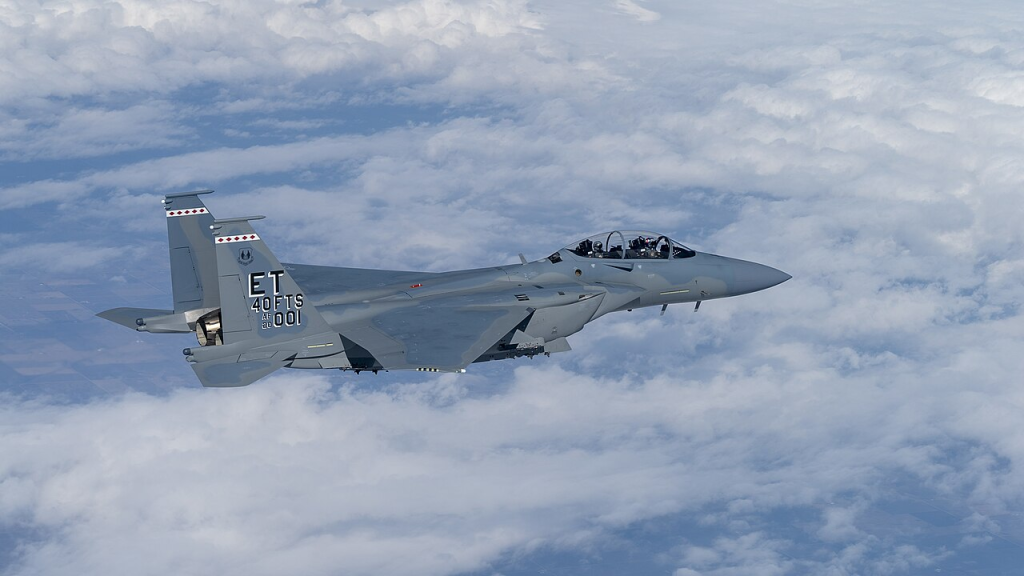

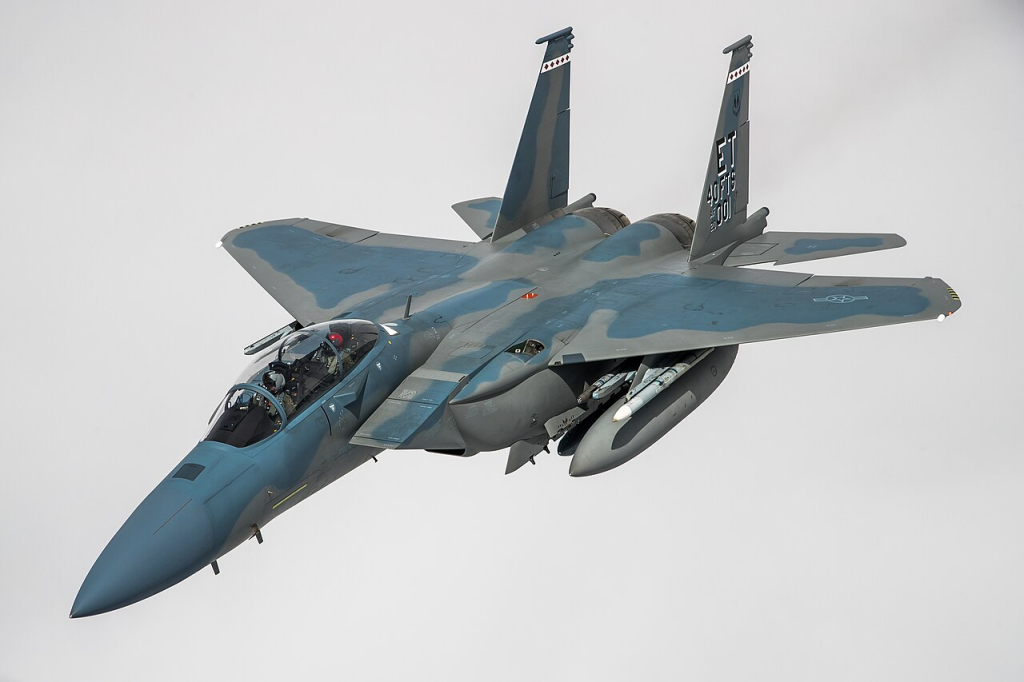

The twin-tail, twin-engine silhouette of the Eagle is an indication of raw potential, power, altitude capabilities and cargo carrying, rather than exquisite style. The current Eagle II retains that familiar shape but changes the internals to make it more applicable to a sensor-saturated environment. Specifically the F-15EX has been fitted with fly-by-wire, new computers and displays and technologies like the AN/APG-82(V)1 AESA radar that transforms the aircraft into a modern weapons-and-sensor truck.
What comes out is an image that resembles, yet is in silent demonstration of an entirely different avionics and electronic-warfare environment than that ever carried by early Eagles. The only problem with these sketches is that the current fighters are not depersonalized.
This is that design indications have moved to the apparent externals, giant intakes, sweeping wings, oversized control surfaces, to more nuanced indicators of planform choices, made by signature, cooling, aperture, and data connections. To engineers and enthusiasts, a glance at a silhouette will be a shortcut to a glance at the mission: which jets hunt, which ones live on the boat, which are constructed around networking, and which were made back in the age when aerodynamic solutions did much of the work.
